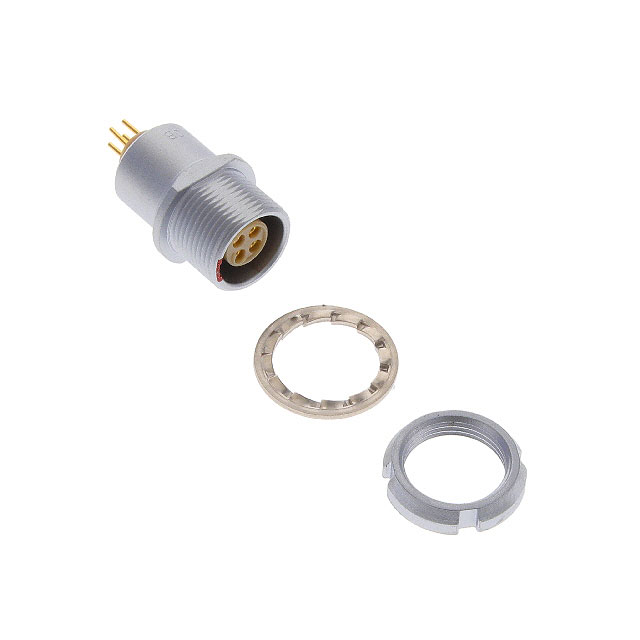

EEG.0B.304.CLN

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.0B.304.CLN

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EEG.0B.304.CLN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded
Termination	Solder

EEG.0B Series

Part	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Fastening Type	Material Flammability Rating	Insert Material	Contact Material	Current Rating (Amps)	Shell Material	Shell Finish	Ingress Protection	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Primary Material	Orientation	Mounting Feature	Connector Type	Number of Positions	Mounting Type	Termination
LEMO EEG.0B.305.CLL	305	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	6.5 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets
LEMO EEG.0B.303.CLL	303	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	8 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets
LEMO EEG.0B.307.CLV	307	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	2.5 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	7	Panel Mount Right Angle Through Hole	Solder
LEMO EEG.0B.304.CLN	304	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	7 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	4	Panel Mount Through Hole	Solder
LEMO EEG.0B.307.CLL	307	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	2.5 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	7
LEMO EEG.0B.303.CYM	303	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	8 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets			Crimp
LEMO EEG.0B.304.CLL	304	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	7 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	4
LEMO EEG.0B.307.KLV	307	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	2.5 A	Brass		IP50	Gold	59 Áin	1.5 Ám	Black	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	7	Panel Mount Right Angle Through Hole	Solder
LEMO EEG.0B.305.CLV	305	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	6 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets		Panel Mount Right Angle Through Hole	Solder
LEMO EEG.0B.306.CLN	306	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	2.5 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	6	Panel Mount Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.86
		10	$ 25.38
		25	$ 23.00
		50	$ 21.39
		100	$ 19.94
		250	$ 18.22
		500	$ 17.07

Description

General part information

EEG.0B Series

4 Position Circular Connector Receptacle, Female Sockets Solder
