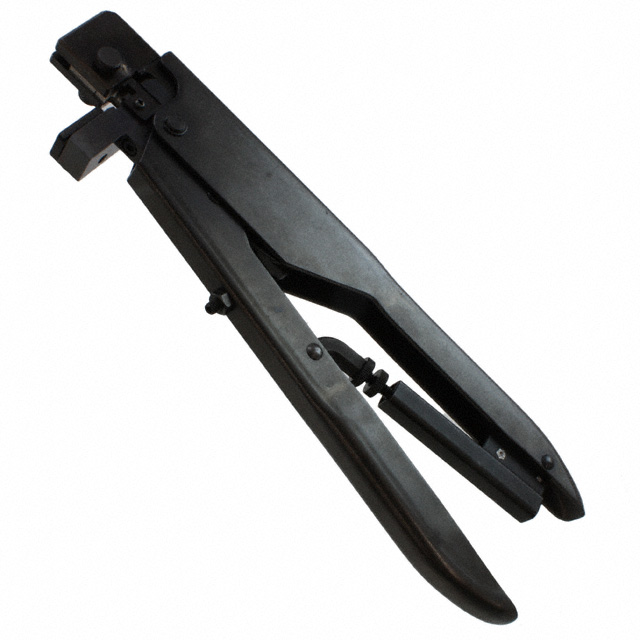

C2777-CT150-4-ES5

Active

JAE Electronics

TOOL HAND CRIMPER 24-28AWG SIDE

Search across all available documentation for this part.

Active

JAE Electronics

TOOL HAND CRIMPER 24-28AWG SIDE

Technical Specifications

Parameters and characteristics for this part

Specification	C2777-CT150-4-ES5

For Use With/Related Products	Solid State Lighting Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	24 AWG

Part	Tool Type	For Use With/Related Products	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Entry Location	Ratcheting	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Tool Method
JAE Electronics C2777-CT150-4-ES9	Hand Crimper	Rectangular Contacts	22 AWG	26 AWG
JAE Electronics C2777-CT150-4-ES5	Hand Crimper	Solid State Lighting Contacts	24 AWG	28 AWG	Side Entry	Ratchet
JAE Electronics C2777-CT150-19B-HB03	Hand Crimper	Rectangular Contacts	24 AWG	30 AWG			0.6 mm²	1.5 mm²
JAE Electronics C2777-3502-MX23-2	Applicator for Bench Press	Rectangular Contacts							Automated
JAE Electronics C2777-CT150-2-DW1	Hand Crimper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Hand Crimper Tool Solid State Lighting Contacts
