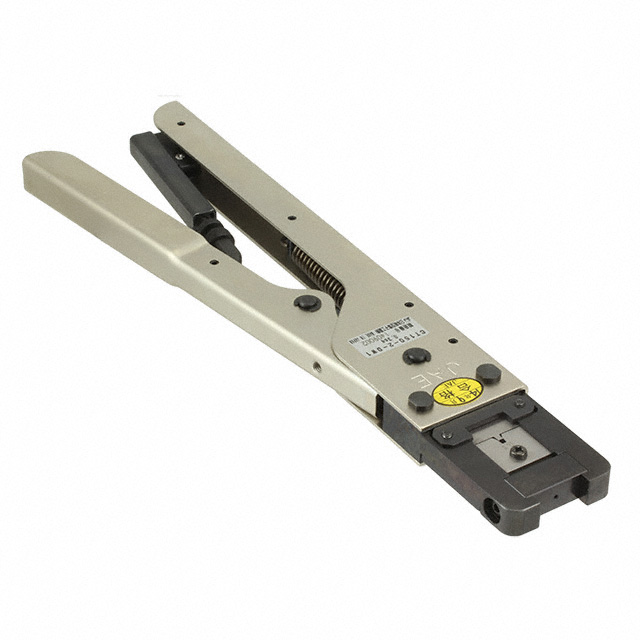

C2777-CT150-2-DW1

Active

JAE Electronics

TOOL HAND CRIMPER

Search across all available documentation for this part.

Active

JAE Electronics

TOOL HAND CRIMPER

Technical Specifications

Parameters and characteristics for this part

Part	Tool Type	For Use With/Related Products	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Entry Location	Ratcheting	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Tool Method
JAE Electronics C2777-CT150-4-ES9	Hand Crimper	Rectangular Contacts	22 AWG	26 AWG
JAE Electronics C2777-CT150-4-ES5	Hand Crimper	Solid State Lighting Contacts	24 AWG	28 AWG	Side Entry	Ratchet
JAE Electronics C2777-CT150-19B-HB03	Hand Crimper	Rectangular Contacts	24 AWG	30 AWG			0.6 mm²	1.5 mm²
JAE Electronics C2777-3502-MX23-2	Applicator for Bench Press	Rectangular Contacts							Automated
JAE Electronics C2777-CT150-2-DW1	Hand Crimper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1560.07

General part information

Hand Crimper Tool

Technical documentation and resources
