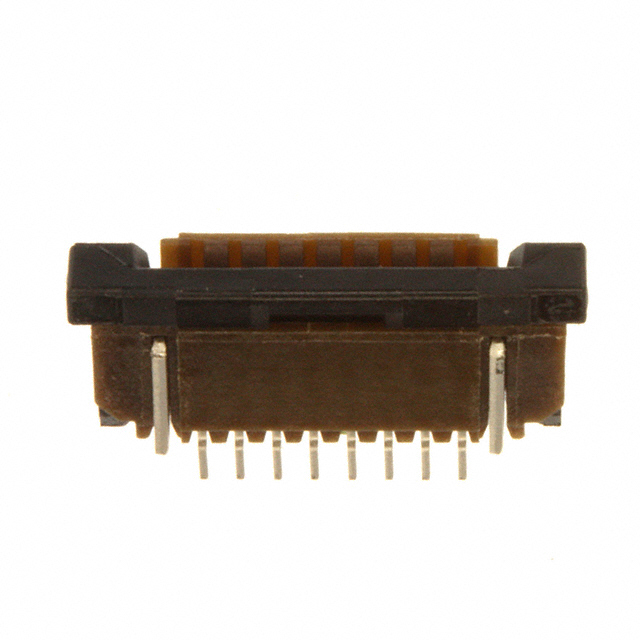

SFW8R-2STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 8POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFW8R-2STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 8POS 1MM R/A
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW8R-2STE1LF |
|---|---|
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Tapered, Straight |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Brown |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Kinked Pin |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 2000 | $ 0.24 | ||
| 4000 | $ 0.23 | |||
| 6000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
| 14000 | $ 0.20 | |||
| 20000 | $ 0.19 | |||
| 50000 | $ 0.19 | |||
Description
General part information
SFW8R Series
8 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
