0026202081
ActiveMolex

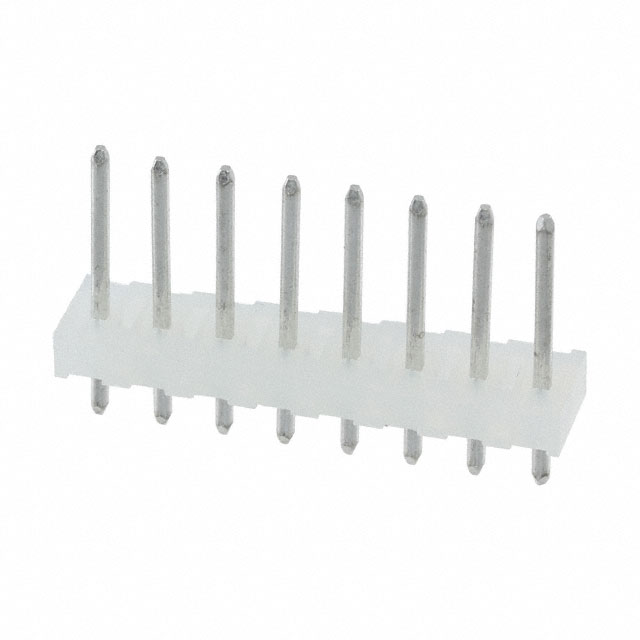

CONN HEADER VERT 8POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
0026202081
ActiveMolex
CONN HEADER VERT 8POS 3.96MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0026202081 |
|---|---|
| Applications | Industrial, Automotive, Medical, General Purpose, Telecommunications |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Length - Mating | 11.43 mm |
| Contact Length - Mating | 0.45 in |
| Contact Length - Post | 4.45 mm |
| Contact Length - Post | 0.175 in |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Natural |
| Insulation Height | 0.125 in |
| Insulation Height | 3.18 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | 0.75 in |
| Overall Contact Length | 19.05 mm |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
002620 Series
| Part | Number of Positions Loaded | Material Flammability Rating | Mounting Type | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Contact Shape | Applications | Contact Length - Post | Contact Length - Post | Contact Material | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Overall Contact Length | Overall Contact Length | Number of Positions | Number of Rows | Shrouding | Termination | Contact Finish - Post | Insulation Color | Connector Type | Style | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | All | UL94 V-2 | Through Hole | Nylon Polyamide (PA) | 0.156 in | 3.96 mm | 11.43 mm | 0.45 in | Circular | Automotive General Purpose Industrial Medical Telecommunications | 4.45 mm | 0.175 in | Brass | Male Pin | 2.54 çm | 100 çin | Push-Pull | 0.75 in | 19.05 mm | 9 | 1 | Unshrouded | Solder | Tin | Natural | Header | Board to Board Cable | 0.125 in | 3.18 mm |
Molex | All | UL94 V-2 | Through Hole | Nylon Polyamide (PA) | 0.156 in | 3.96 mm | 11.43 mm | 0.45 in | Circular | Automotive General Purpose Industrial Medical Telecommunications | 4.45 mm | 0.175 in | Brass | Male Pin | 2.54 çm | 100 çin | Push-Pull | 0.75 in | 19.05 mm | 7 | 1 | Unshrouded | Solder | Tin | Natural | Header | Board to Board Cable | 0.125 in | 3.18 mm |
Molex | All | UL94 V-2 | Through Hole | Nylon Polyamide (PA) | 0.156 in | 3.96 mm | 11.43 mm | 0.45 in | Circular | Automotive General Purpose Industrial Medical Telecommunications | 4.45 mm | 0.175 in | Brass | Male Pin | 2.54 çm | 100 çin | Push-Pull | 0.75 in | 19.05 mm | 4 | 1 | Unshrouded | Solder | Tin | Natural | Header | Board to Board Cable | 0.125 in | 3.18 mm |
Molex | All | UL94 V-2 | Through Hole | Nylon Polyamide (PA) | 0.156 in | 3.96 mm | 11.43 mm | 0.45 in | Circular | Automotive General Purpose Industrial Medical Telecommunications | 4.45 mm | 0.175 in | Brass | Male Pin | 2.54 çm | 100 çin | Push-Pull | 0.75 in | 19.05 mm | 12 | 1 | Unshrouded | Solder | Tin | Natural | Header | Board to Board Cable | 0.125 in | 3.18 mm |
Molex | All | UL94 V-2 | Through Hole | Nylon Polyamide (PA) | 0.156 in | 3.96 mm | 11.43 mm | 0.45 in | Circular | Automotive General Purpose Industrial Medical Telecommunications | 4.45 mm | 0.175 in | Brass | Male Pin | 2.54 çm | 100 çin | Push-Pull | 0.75 in | 19.05 mm | 6 | 1 | Unshrouded | Solder | Tin | Natural | Header | Board to Board Cable | 0.125 in | 3.18 mm |
Molex | |||||||||||||||||||||||||||||
Molex | All | UL94 V-2 | Through Hole | Nylon Polyamide (PA) | 0.156 in | 3.96 mm | 11.43 mm | 0.45 in | Circular | Automotive General Purpose Industrial Medical Telecommunications | 4.45 mm | 0.175 in | Brass | Male Pin | 2.54 çm | 100 çin | Push-Pull | 0.75 in | 19.05 mm | 18 | 1 | Unshrouded | Solder | Tin | Natural | Header | Board to Board Cable | 0.125 in | 3.18 mm |
Molex | All | UL94 V-2 | Through Hole | Nylon Polyamide (PA) | 0.156 in | 3.96 mm | 11.43 mm | 0.45 in | Circular | Automotive General Purpose Industrial Medical Telecommunications | 4.45 mm | 0.175 in | Brass | Male Pin | 2.54 çm | 100 çin | Push-Pull | 0.75 in | 19.05 mm | 10 | 1 | Unshrouded | Solder | Tin | Natural | Header | Board to Board Cable | 0.125 in | 3.18 mm |
Molex | All | UL94 V-2 | Through Hole | Nylon Polyamide (PA) | 0.156 in | 3.96 mm | 11.43 mm | 0.45 in | Circular | Automotive General Purpose Industrial Medical Telecommunications | 4.45 mm | 0.175 in | Brass | Male Pin | 2.54 çm | 100 çin | Push-Pull | 0.75 in | 19.05 mm | 8 | 1 | Unshrouded | Solder | Tin | Natural | Header | Board to Board Cable | 0.125 in | 3.18 mm |
Molex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.67 | |
| 10 | $ 1.42 | |||
| 300 | $ 1.18 | |||
| 1200 | $ 0.93 | |||
| 5100 | $ 0.82 | |||
| 10200 | $ 0.80 | |||
Description
General part information
002620 Series
Connector Header Through Hole 8 position 0.156" (3.96mm)
