0026202041

Active

Molex

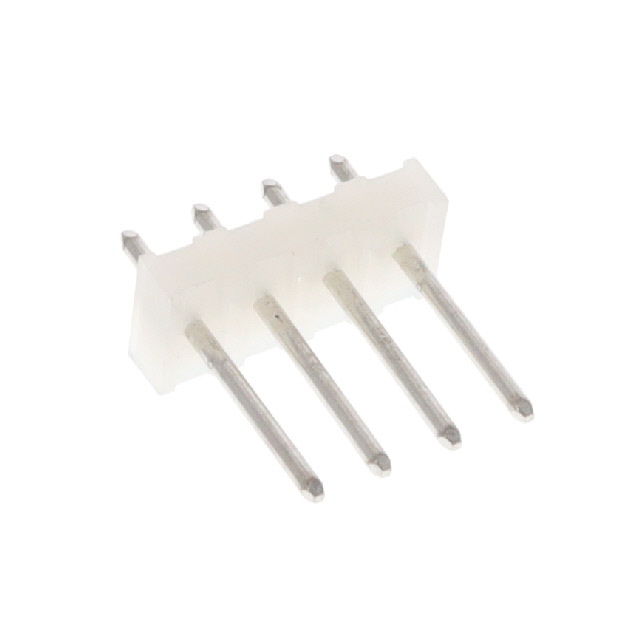

CONN HEADER VERT 4POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0026202041

Active

Molex

CONN HEADER VERT 4POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026202041

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.125 in
Insulation Height	3.18 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.75 in
Overall Contact Length	19.05 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

002620 Series

Part	Number of Positions Loaded	Material Flammability Rating	Mounting Type	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Applications	Contact Length - Post	Contact Length - Post	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Overall Contact Length	Overall Contact Length	Number of Positions	Number of Rows	Shrouding	Termination	Contact Finish - Post	Insulation Color	Connector Type	Style	Insulation Height	Insulation Height
Molex 0026202091	All	UL94 V-2	Through Hole	Nylon Polyamide (PA)	0.156 in	3.96 mm	11.43 mm	0.45 in	Circular	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Brass	Male Pin	2.54 çm	100 çin	Push-Pull	0.75 in	19.05 mm	9	1	Unshrouded	Solder	Tin	Natural	Header	Board to Board Cable	0.125 in	3.18 mm
Molex 0026202071	All	UL94 V-2	Through Hole	Nylon Polyamide (PA)	0.156 in	3.96 mm	11.43 mm	0.45 in	Circular	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Brass	Male Pin	2.54 çm	100 çin	Push-Pull	0.75 in	19.05 mm	7	1	Unshrouded	Solder	Tin	Natural	Header	Board to Board Cable	0.125 in	3.18 mm
Molex 0026202041	All	UL94 V-2	Through Hole	Nylon Polyamide (PA)	0.156 in	3.96 mm	11.43 mm	0.45 in	Circular	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Brass	Male Pin	2.54 çm	100 çin	Push-Pull	0.75 in	19.05 mm	4	1	Unshrouded	Solder	Tin	Natural	Header	Board to Board Cable	0.125 in	3.18 mm
Molex 0026202121	All	UL94 V-2	Through Hole	Nylon Polyamide (PA)	0.156 in	3.96 mm	11.43 mm	0.45 in	Circular	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Brass	Male Pin	2.54 çm	100 çin	Push-Pull	0.75 in	19.05 mm	12	1	Unshrouded	Solder	Tin	Natural	Header	Board to Board Cable	0.125 in	3.18 mm
Molex 0026202061	All	UL94 V-2	Through Hole	Nylon Polyamide (PA)	0.156 in	3.96 mm	11.43 mm	0.45 in	Circular	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Brass	Male Pin	2.54 çm	100 çin	Push-Pull	0.75 in	19.05 mm	6	1	Unshrouded	Solder	Tin	Natural	Header	Board to Board Cable	0.125 in	3.18 mm
Molex 0026202131
Molex 0026202181	All	UL94 V-2	Through Hole	Nylon Polyamide (PA)	0.156 in	3.96 mm	11.43 mm	0.45 in	Circular	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Brass	Male Pin	2.54 çm	100 çin	Push-Pull	0.75 in	19.05 mm	18	1	Unshrouded	Solder	Tin	Natural	Header	Board to Board Cable	0.125 in	3.18 mm
Molex 0026202101	All	UL94 V-2	Through Hole	Nylon Polyamide (PA)	0.156 in	3.96 mm	11.43 mm	0.45 in	Circular	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Brass	Male Pin	2.54 çm	100 çin	Push-Pull	0.75 in	19.05 mm	10	1	Unshrouded	Solder	Tin	Natural	Header	Board to Board Cable	0.125 in	3.18 mm
Molex 0026202081	All	UL94 V-2	Through Hole	Nylon Polyamide (PA)	0.156 in	3.96 mm	11.43 mm	0.45 in	Circular	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Brass	Male Pin	2.54 çm	100 çin	Push-Pull	0.75 in	19.05 mm	8	1	Unshrouded	Solder	Tin	Natural	Header	Board to Board Cable	0.125 in	3.18 mm
Molex 0026202032

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.15
		10	$ 0.98
		100	$ 0.83
		500	$ 0.74
		1000	$ 0.71
		5000	$ 0.63
		10000	$ 0.60

Description

General part information

002620 Series

Connector Header Through Hole 4 position 0.156" (3.96mm)
