305-086-521-501

Active

EDAC Inc.

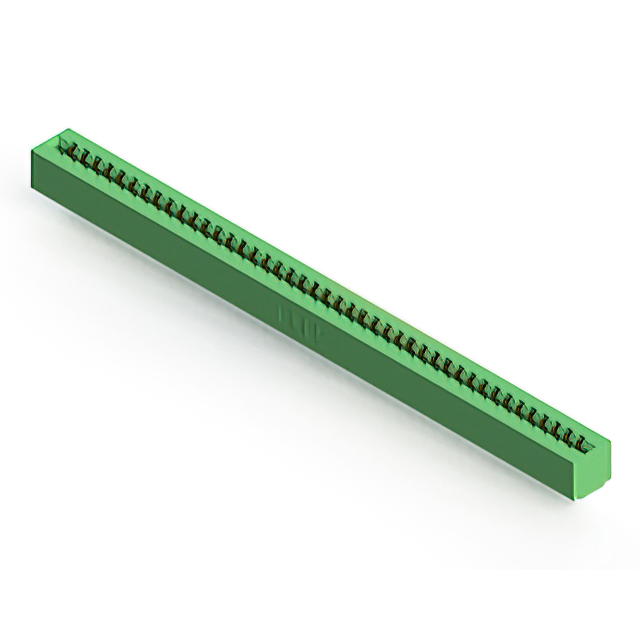

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 86 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

305-086-521-501

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 86 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	305-086-521-501

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

305-086 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Read Out	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Features	Gender	Pitch [x]	Pitch [x]	Material - Insulation	Card Type	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Contact Finish	Termination Rows
EDAC Inc. 305-086-556-204	-40 °C	105 ░C	Copper Alloy	Dual	Board Edge Straddle Mount	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Green	Semi Bellows	10 Áin	0.25 Ám	2	86	Card Extender	Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Gold	2
EDAC Inc. 305-086-520-268	-40 °C	105 ░C	Copper Alloy	Dual	Panel Mount Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Gold	2
EDAC Inc. 305-086-521-202	-40 °C	105 ░C	Copper Alloy	Dual	Panel Mount Through Hole	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Gold	2
EDAC Inc. 305-086-556-568	-40 °C	105 ░C	Copper Alloy	Dual	Board Edge Straddle Mount		4-40 Flush Mount Threaded Insert Top Opening		Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Gold	2
EDAC Inc. 305-086-520-558	-40 °C	105 ░C	Copper Alloy	Dual	Panel Mount Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Gold	2
EDAC Inc. 305-086-500-508	-40 °C	105 ░C	Copper Alloy	Dual			4-40 Flush Mount Threaded Insert Top Opening		Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Gold	2
EDAC Inc. 305-086-521-502	-40 °C	105 ░C	Copper Alloy	Dual	Panel Mount Through Hole	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Gold	2
EDAC Inc. 305-086-521-501	-40 °C	105 ░C	Copper Alloy	Dual	Through Hole				Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Gold	2
EDAC Inc. 305-086-500-501	-40 °C	105 ░C	Copper Alloy	Dual	Free Hanging (In-Line)				Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Gold	2
EDAC Inc. 305-086-520-207	-40 °C	105 ░C	Copper Alloy	Dual	Panel Mount Through Hole		Flush Mount M3 Threaded Insert Top Opening		Green	Semi Bellows	10 Áin	0.25 Ám	2	86		Female	0.156 in	3.96 mm	Polyester Thermoplastic	Non Specified - Dual Edge	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Gold	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.93
Newark	Each	1	$ 15.22
		100	$ 12.86
		250	$ 11.61
		500	$ 11.02
		1000	$ 8.88

Description

General part information

305-086 Series

86 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
