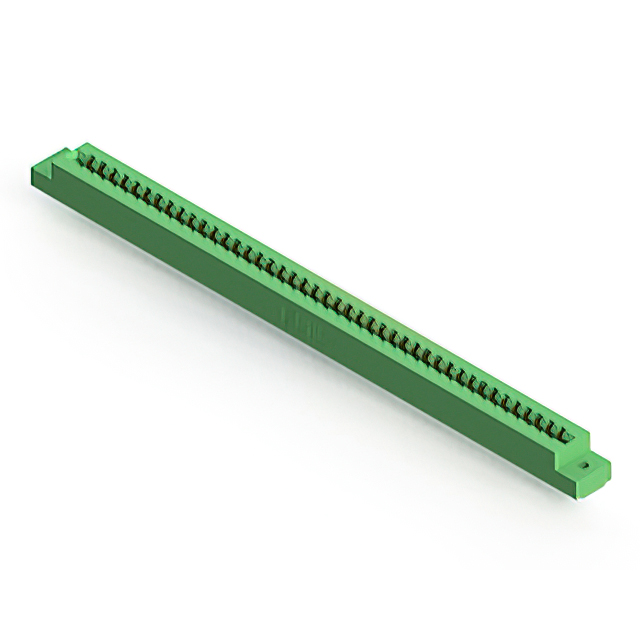

305-086-521-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
305-086-521-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.156
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-086-521-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 86 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-086 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Read Out | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions | Features | Gender | Pitch [x] | Pitch [x] | Material - Insulation | Card Type | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Finish | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Board Edge Straddle Mount | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Card Extender | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 2 |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Panel Mount Through Hole | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 2 | |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Board Edge Straddle Mount | 4-40 Flush Mount Threaded Insert Top Opening | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Gold | 2 | ||||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Panel Mount Through Hole | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 2 | |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Through Hole | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 2 | ||||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Free Hanging (In-Line) | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Gold | 2 | ||||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Panel Mount Through Hole | Flush Mount M3 Threaded Insert Top Opening | Green | Semi Bellows | 10 Áin | 0.25 Ám | 2 | 86 | Female | 0.156 in | 3.96 mm | Polyester Thermoplastic | Non Specified - Dual Edge | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 15.16 | |
Description
General part information
305-086 Series
86 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
