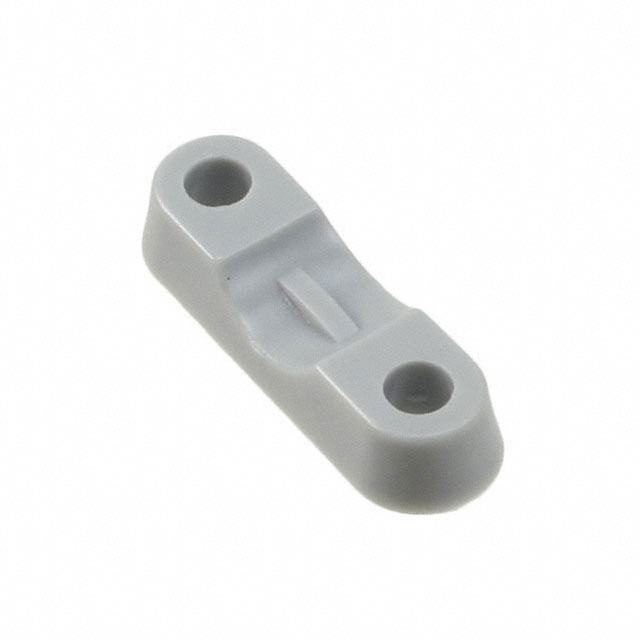

SRCC-1

Obsolete

Essentra Access Solutions

CBL CLAMP STR RLF GRAY FASTENER

Search across all available documentation for this part.

Obsolete

Essentra Access Solutions

CBL CLAMP STR RLF GRAY FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	SRCC-1

Color	Gray
Height [z]	0.197 "
Height [z]	5 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size	4.5 mm
Opening Size [custom]	0.177 in
Panel Hole Size [diameter]	4.29 mm
Panel Hole Size [diameter]	0.169 in
Screw Size	M3
Screw Size	#6
Type	Clamp, Strain Relief

Part	Type	Color	Mounting Type	Material	Screw Size	Screw Size	Material Flammability Rating	Height [z]	Height [z]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Opening Size	Opening Size [custom]	Width [x]	Width [x]	Length	Length	Panel Hole Size	Panel Hole Size	Opening Size
Essentra Access Solutions SRCC-1	Clamp Strain Relief	Gray	Fastener	Polyamide (PA66) Nylon 6/6	M3	#6	UL94 V-2	0.197 "	5 mm	4.29 mm	0.169 in	4.5 mm	0.177 in
Essentra Access Solutions SRCC-2	Clamp Strain Relief	Black	Fastener	Polyamide (PA66) Nylon 6/6	M3	#4	UL94 V-2	0.2 in	5.08 mm			0.315 in		0.22 in	5.59 mm	0.79 "	20.07 mm	0.126 in	3.2 mm	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clamp, Strain Relief Gray Fastener 0.177" (4.50mm)
