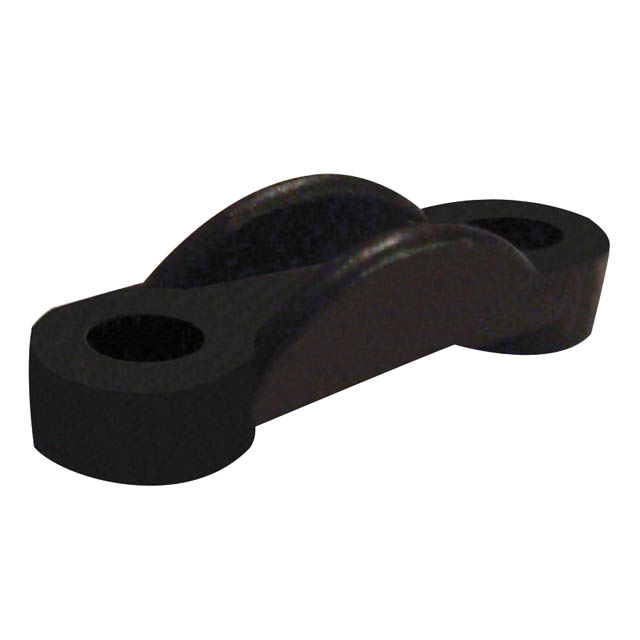

SRCC-2

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 20 MM, 5.5 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 20 MM, 5.5 MM

Technical Specifications

Parameters and characteristics for this part

Specification	SRCC-2

Color	Black
Height [z]	5.08 mm
Height [z]	0.2 in
Length	0.79 "
Length	20.07 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size	0.315 in
Opening Size	8 mm
Panel Hole Size	0.126 in
Panel Hole Size	3.2 mm
Screw Size	M3
Screw Size	#4
Type	Clamp, Strain Relief
Width [x]	0.22 in
Width [x]	5.59 mm

Part	Type	Color	Mounting Type	Material	Screw Size	Screw Size	Material Flammability Rating	Height [z]	Height [z]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Opening Size	Opening Size [custom]	Width [x]	Width [x]	Length	Length	Panel Hole Size	Panel Hole Size	Opening Size
Essentra Access Solutions SRCC-1	Clamp Strain Relief	Gray	Fastener	Polyamide (PA66) Nylon 6/6	M3	#6	UL94 V-2	0.197 "	5 mm	4.29 mm	0.169 in	4.5 mm	0.177 in
Essentra Access Solutions SRCC-2	Clamp Strain Relief	Black	Fastener	Polyamide (PA66) Nylon 6/6	M3	#4	UL94 V-2	0.2 in	5.08 mm			0.315 in		0.22 in	5.59 mm	0.79 "	20.07 mm	0.126 in	3.2 mm	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, Strain Relief Black Fastener 0.315" (8.00mm)
