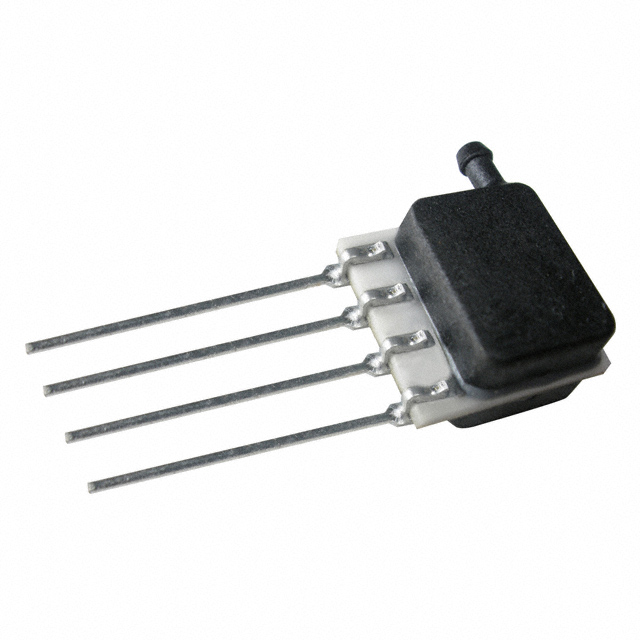

SSCSRNN001PGAA5

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 0.23" 4.5V 4SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Pressure Sensors Line Guide

SSCSRNN001PGAA5

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 0.23" 4.5V 4SIP

Deep-Dive with AI

DocumentsDatasheet Pressure Sensors Line Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSCSRNN001PGAA5

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	10 PSI
Maximum Pressure [Max]	68.95 kPa
Mounting Type	Through Hole
Operating Pressure	6.89 kPa
Operating Pressure	1 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	4-SIP, Side Port
Port Size	0.23 "
Port Size	5.8 mm
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	4-SIP
Termination Style	PC Pin
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

SSCSRNN Series

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Size [diameter]	Port Size	Port Size [diameter]	Output [Min]	Output [Max]	Supplier Device Package	Operating Pressure [custom]	Operating Pressure [custom]	Port Style	Mounting Type	Features	Package / Case	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Operating Pressure	Operating Pressure	Output	Maximum Pressure	Maximum Pressure	Pressure Type	Port Size	Port Size
Honeywell Sensing and Productivity Solutions SSCSRNN015PAAA3	30 PSI	206.84 kPa	Board Mount	0.25 %	3.6 V	3 V	0.08 "	Male Tube	1.92 mm	0.33 V	2.97 V	4-SIP	15 PSI	103.42 kPa	Barbed	Through Hole	Amplified Output Temperature Compensated	4-SIP Side Port	PC Pin	85 °C	-40 °C	Analog Voltage
Honeywell Sensing and Productivity Solutions SSCSRNN1.6BA7A3			Board Mount	0.25 %	3.6 V	3 V	0.08 "	Male Tube	1.92 mm			4-SIP			Barbed	Through Hole	Amplified Output Temperature Compensated	4-SIP Side Port	PC Pin	85 °C	-40 °C	I2C	160 kPa	23.21 PSI	12 b	400 kPa	58.02 PSI
Honeywell Sensing and Productivity Solutions SSCSRNN015PA3A3	30 PSI	206.84 kPa	Board Mount	0.25 %	3.6 V	3 V	0.08 "	Male Tube	1.92 mm			4-SIP	15 PSI	103.42 kPa	Barbed	Through Hole	Amplified Output Temperature Compensated	4-SIP Side Port	PC Pin	85 °C	-40 °C	I2C			12 b
Honeywell Sensing and Productivity Solutions SSCSRNN001PGAA5	10 PSI	68.95 kPa	Board Mount	0.25 %	5.25 V	4.75 V				0.5 V	4.5 V	4-SIP			Barbed	Through Hole	Amplified Output Temperature Compensated	4-SIP Side Port	PC Pin	85 °C	-40 °C	Analog Voltage	6.89 kPa	1 PSI				Vented Gauge	0.23 "	5.8 mm
Honeywell Sensing and Productivity Solutions SSCSRNN100MGAA3			Board Mount	0.25 %	3.6 V	3 V	0.08 "	Male Tube	1.92 mm	0.33 V	2.97 V	4-SIP			Barbed	Through Hole	Amplified Output Temperature Compensated	4-SIP Side Port	PC Pin	85 °C	-40 °C	Analog Voltage	10 kPa	1.45 PSI		85 kPa	12.33 PSI	Vented Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSCSRNN Series

Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.23" (5.8mm) Tube 0.5 V ~ 4.5 V 4-SIP, Side Port
