DF36A-50P-SHL

Active

Hirose Electric USA, Inc.

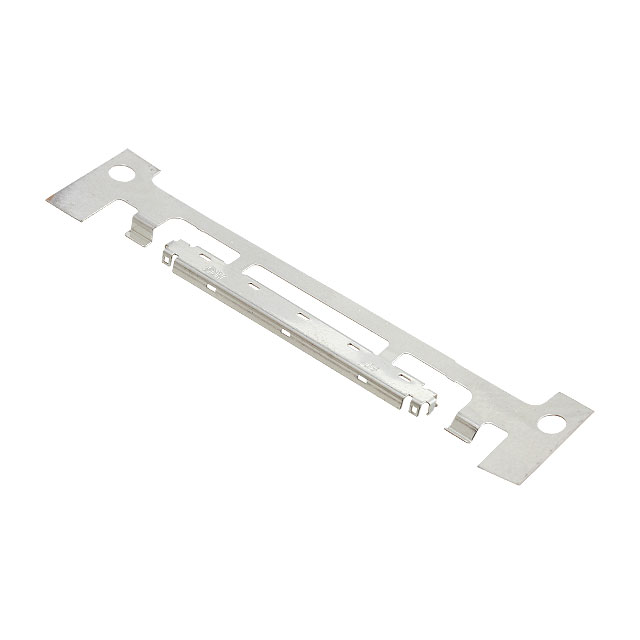

CONN COVER FOR 50POS PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF36A-50P-SHL

Active

Hirose Electric USA, Inc.

CONN COVER FOR 50POS PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF36A-50P-SHL

Accessory Type	Shield
For Use With/Related Products	DF36 Series
Number of Positions	50

DF36A Series

Part	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Material Flammability Rating	Fastening Type	Termination	Insulation Color	Mounting Type	Number of Positions Loaded	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish - Post	Number of Rows	Contact Material	Voltage Rating	Style	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Accessory Type	For Use With/Related Products
Hirose Electric USA, Inc. DF36A-15S-0.4V(51)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	15	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-25S-0.4V(51)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free		UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-40S-0.4V(51)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	40	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-50S-0.4V(55)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	50	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-50P-SHL				50																									Shield	DF36 Series
Hirose Electric USA, Inc. DF36A-15S-0.4V(55)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	15	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-25P-SHL																													Shield	DF36 Series
Hirose Electric USA, Inc. DF36A-50S-0.4V(51)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	50	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-40P-SHL(52)				40																									Shield	DF36 Series
Hirose Electric USA, Inc. DF36A-40S-0.4V(52)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	40	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
