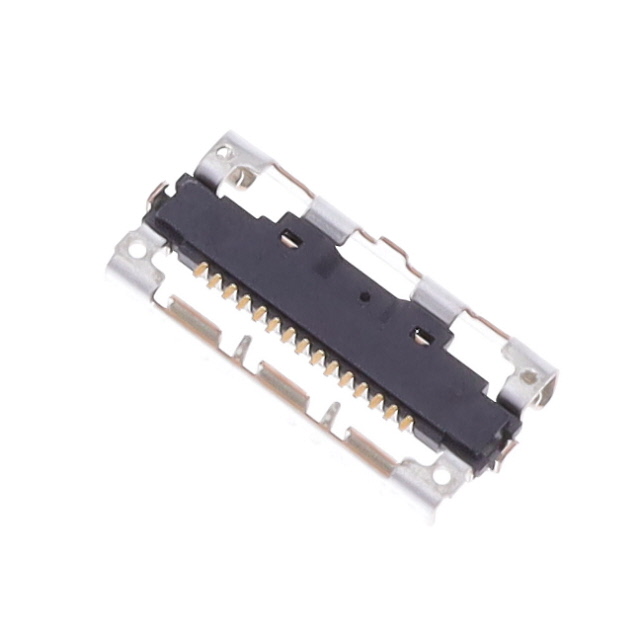

DF36A-15S-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 15POS 0.016 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF36A-15S-0.4V(51) Spec

DF36A-15S-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 15POS 0.016 GOLD SMD

Deep-Dive with AI

DocumentsDF36A-15S-0.4V(51) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF36A-15S-0.4V(51)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	0.099 µm
Contact Finish Thickness - Post	3.9 µin
Contact Material	Phosphor Bronze
Contact Type	Center Strip Contact
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Friction Lock
Features	Solder Retention, Metal Cover
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.016 in
Pitch - Mating	0.4 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VAC

DF36A Series

Part	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Material Flammability Rating	Fastening Type	Termination	Insulation Color	Mounting Type	Number of Positions Loaded	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish - Post	Number of Rows	Contact Material	Voltage Rating	Style	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Accessory Type	For Use With/Related Products
Hirose Electric USA, Inc. DF36A-15S-0.4V(51)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	15	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-25S-0.4V(51)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free		UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-40S-0.4V(51)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	40	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-50S-0.4V(55)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	50	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-50P-SHL				50																									Shield	DF36 Series
Hirose Electric USA, Inc. DF36A-15S-0.4V(55)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	15	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-25P-SHL																													Shield	DF36 Series
Hirose Electric USA, Inc. DF36A-50S-0.4V(51)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	50	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
Hirose Electric USA, Inc. DF36A-40P-SHL(52)				40																									Shield	DF36 Series
Hirose Electric USA, Inc. DF36A-40S-0.4V(52)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP) Halogen Free	40	UL94 V-0	Friction Lock	Solder	Black	Surface Mount	All	Center Strip Contact	-35 °C	85 °C	Metal Cover Solder Retention	Gold	1	Phosphor Bronze	30 VAC	Board to Cable/Wire	Receptacle	0.099 µm	3.9 µin	Varies by Wire Gauge	1.5 mm	0.059 "	Gold	12 µin	0.3 µm
