1551 WU005

Active

ALPHA WIRE

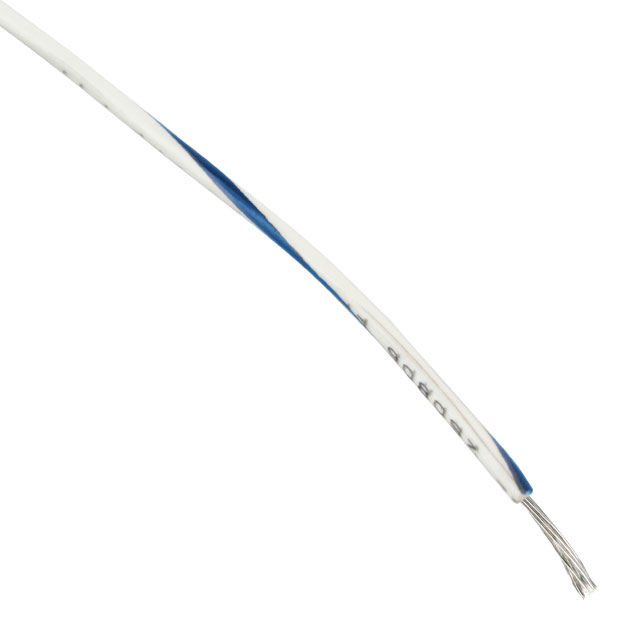

HOOK-UP STRND 22AWG WHT/BLU 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog Alpha Wire Print Notification

1551 WU005

Active

ALPHA WIRE

HOOK-UP STRND 22AWG WHT/BLU 100'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog Alpha Wire Print Notification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1551 WU005

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.062 in
Jacket (Insulation) Diameter [diameter]	1.57 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	White, Blue Stripe
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	22 AWG

1551 Series

Part	Qualification	Voltage	Conductor Material	Wire Gauge	Cable Type	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket Color
ALPHA WIRE 1551 WH001	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up	1000 ft	304.8 m	-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm
ALPHA WIRE 1551 WG005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1551 WG001	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up	1000 ft	304.8 m	-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm
ALPHA WIRE 1551 OR005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft	Orange
ALPHA WIRE 1551 WR005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft	White Red Stripe
ALPHA WIRE 1551 WH005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1551 BK001	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up	1000 ft	304.8 m	-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm			Black
ALPHA WIRE 1551 SL005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft	Slate
ALPHA WIRE 1551 WY001	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up	1000 ft	304.8 m	-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm			White Yellow Stripe
ALPHA WIRE 1551 WU005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft	White Blue Stripe

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 55.02
		2	$ 52.38
		3	$ 50.88
		5	$ 49.04
		7	$ 47.87
		10	$ 46.65
		25	$ 43.63
		50	$ 41.45
		100	$ 39.36

Description

General part information

1551 Series

22 AWG Hook-Up Wire 7/30 White, Blue Stripe 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet
