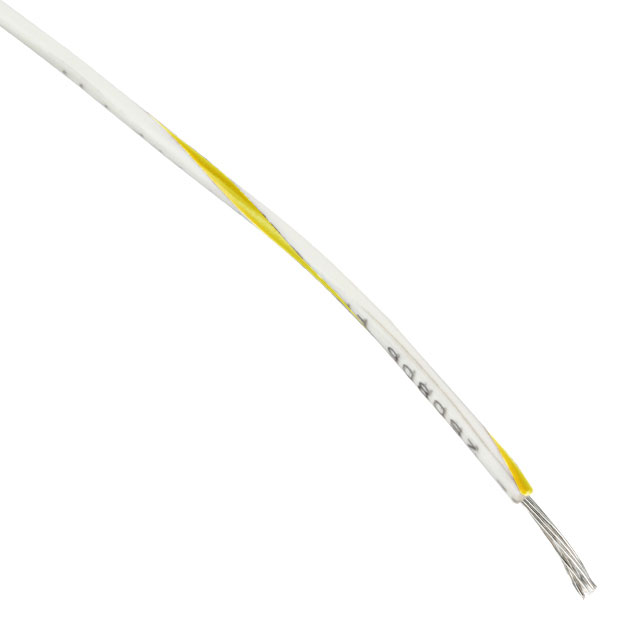

1551 WY001

Active

ALPHA WIRE

WIRE, HOOK UP, PVC, WHITE, YELLOW, 22 AWG, 0.35 MM², 1000 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1551 WY001

Active

ALPHA WIRE

WIRE, HOOK UP, PVC, WHITE, YELLOW, 22 AWG, 0.35 MM², 1000 FT

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1551 WY001

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.062 in
Jacket (Insulation) Diameter [diameter]	1.57 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	White, Yellow Stripe
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	22 AWG

1551 Series

Part	Qualification	Voltage	Conductor Material	Wire Gauge	Cable Type	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket Color
ALPHA WIRE 1551 WH001	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up	1000 ft	304.8 m	-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm
ALPHA WIRE 1551 WG005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1551 WG001	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up	1000 ft	304.8 m	-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm
ALPHA WIRE 1551 OR005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft	Orange
ALPHA WIRE 1551 WR005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft	White Red Stripe
ALPHA WIRE 1551 WH005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft
ALPHA WIRE 1551 BK001	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up	1000 ft	304.8 m	-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm			Black
ALPHA WIRE 1551 SL005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft	Slate
ALPHA WIRE 1551 WY001	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up	1000 ft	304.8 m	-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm			White Yellow Stripe
ALPHA WIRE 1551 WU005	MIL-W-76B Type MW	1000 V	Copper Tinned	22 AWG	Hook-Up			-40 °C	80 C	0.062 in	1.57 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	30.5 m	100 ft	White Blue Stripe

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 240.72
		2	$ 228.97
		3	$ 222.31
		5	$ 214.16
		7	$ 208.93
		10	$ 203.49
		25	$ 190.37
Newark	Spool of 1000	1	$ 267.62
		10	$ 264.92

Description

General part information

1551 Series

The 1551 WY001 is a 1000ft white/yellow Hook-up Wire with tinned copper conductor and PVC insulation. It is exactly suited for the application as control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven or off-road construction equipment. It has ability to withstand wear and abrasion, electrical performance or resistance to oil, solvents and chemicals.

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet
