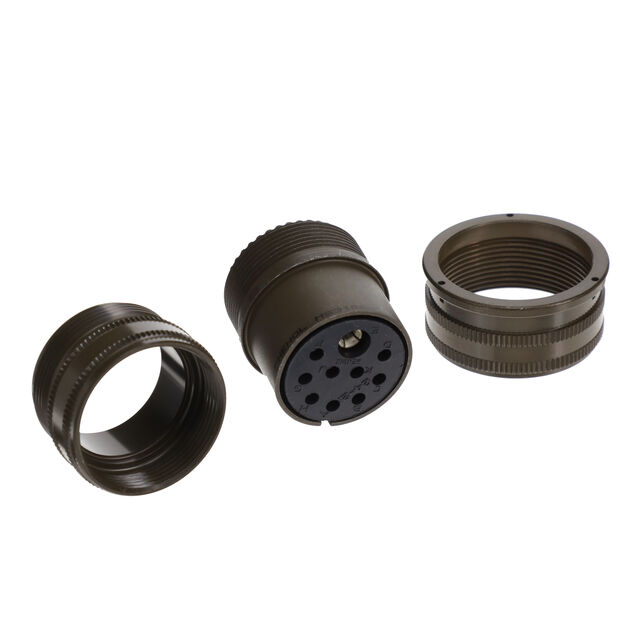

MS3106A24-21S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106A24-21S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106A24-21S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A, 13 A
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	24-21
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

MS3106A24 Series

Part	Applications	Orientation	Qualification	Number of Positions	Contact Material	Contact Finish - Mating	Shell Size - Insert	Shell Finish	Color	Shell Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Connector Type	Features	Mounting Type	Shielding	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Voltage Rating	Grade	Current Rating (Amps)
Amphenol Industrial Operations MS3106A24-7S	Marine Military	N	MIL-DTL-5015	16	Copper Alloy	Silver	24-7	Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Female Sockets Plug	Backshell Coupling Nut	Free Hanging (In-Line)	Unshielded
Amphenol Industrial Operations MS3106A24-11P	Marine Military	N	MIL-DTL-5015		Copper Alloy	Silver	24-11	Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Male Pins Plug	Backshell Coupling Nut	Free Hanging (In-Line)	Unshielded	9
Amphenol Industrial Operations MS3106A24-28S	Marine Military	N	MIL-DTL-5015		Copper Alloy	Silver		Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Female Sockets Plug	Backshell Coupling Nut	Free Hanging (In-Line)	Unshielded	24	28	24
Amphenol Industrial Operations MS3106A24-22P	Marine Military	N	MIL-DTL-5015		Copper Alloy	Silver	24-22	Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Male Pins Plug	Backshell Coupling Nut	Free Hanging (In-Line)	Unshielded	4
Amphenol Industrial Operations MS3106A24-9SW	Marine Military	W	MIL-DTL-5015		Copper Alloy	Silver	24-9	Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Female Sockets Plug	Backshell Coupling Nut	Free Hanging (In-Line)	Unshielded	2
Amphenol Industrial Operations MS3106A24-28P-RES	Marine Military	N	MIL-5015		Copper Alloy	Silver		Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Male Pins Plug		Free Hanging (In-Line)	Unshielded	24	28	24	Environment Resistant	200 VAC 250 VDC
Amphenol Industrial Operations MS3106A24-27S	Marine Military	N	MIL-DTL-5015		Copper Alloy	Silver		Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Female Sockets Plug	Backshell Coupling Nut	Free Hanging (In-Line)	Unshielded	7	27	24	Environment Resistant	1250 VAC 1750 VDC	Military	13 A
Amphenol Industrial Operations MS3106A24-21S	Marine Military	N	MIL-DTL-5015		Copper Alloy	Silver	24-21	Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Female Sockets Plug	Backshell Coupling Nut	Free Hanging (In-Line)	Unshielded	10			Environment Resistant	900 VAC 1250 VDC	Military	13 A 46 A
Amphenol Industrial Operations MS3106A24-16S
Amphenol Industrial Operations MS3106A24-9P	Marine Military	N	MIL-DTL-5015		Copper Alloy	Silver	24-9	Olive Drab Chromate over Cadmium	Olive Drab	Aluminum Alloy	Neoprene	-55 °C	125 °C	Metal	Male Pins Plug	Backshell Coupling Nut	Free Hanging (In-Line)	Unshielded	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 46.50
		10	$ 42.67
		25	$ 41.03
		50	$ 39.66
		100	$ 37.47
		250	$ 36.38

Description

General part information

MS3106A24 Series

10 Position Circular Connector Plug, Female Sockets Solder Cup
