MS3106A24-11P
ActiveAmphenol Industrial Operations

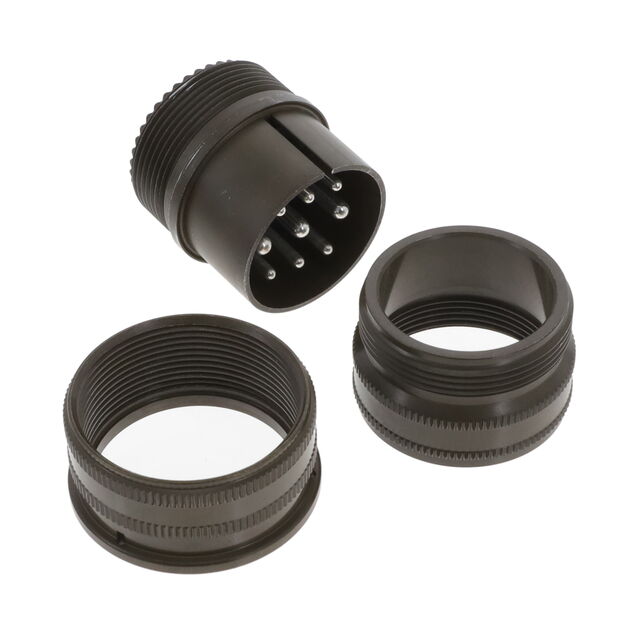

CONN PLUG MALE 9P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3106A24-11P
ActiveAmphenol Industrial Operations
CONN PLUG MALE 9P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106A24-11P |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Coupling Nut, Backshell |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 24-11 |
| Shielding | Unshielded |
MS3106A24 Series
| Part | Applications | Orientation | Qualification | Number of Positions | Contact Material | Contact Finish - Mating | Shell Size - Insert | Shell Finish | Color | Shell Material | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Connector Type | Features | Mounting Type | Shielding | Number of Positions | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Ingress Protection | Voltage Rating | Grade | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Marine Military | N | MIL-DTL-5015 | 16 | Copper Alloy | Silver | 24-7 | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Female Sockets Plug | Backshell Coupling Nut | Free Hanging (In-Line) | Unshielded | |||||||
Amphenol Industrial Operations | Marine Military | N | MIL-DTL-5015 | Copper Alloy | Silver | 24-11 | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Male Pins Plug | Backshell Coupling Nut | Free Hanging (In-Line) | Unshielded | 9 | |||||||
Amphenol Industrial Operations | Marine Military | N | MIL-DTL-5015 | Copper Alloy | Silver | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Female Sockets Plug | Backshell Coupling Nut | Free Hanging (In-Line) | Unshielded | 24 | 28 | 24 | ||||||
Amphenol Industrial Operations | Marine Military | N | MIL-DTL-5015 | Copper Alloy | Silver | 24-22 | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Male Pins Plug | Backshell Coupling Nut | Free Hanging (In-Line) | Unshielded | 4 | |||||||
Amphenol Industrial Operations | Marine Military | W | MIL-DTL-5015 | Copper Alloy | Silver | 24-9 | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Female Sockets Plug | Backshell Coupling Nut | Free Hanging (In-Line) | Unshielded | 2 | |||||||
Amphenol Industrial Operations | Marine Military | N | MIL-5015 | Copper Alloy | Silver | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Male Pins Plug | Free Hanging (In-Line) | Unshielded | 24 | 28 | 24 | Environment Resistant | 200 VAC 250 VDC | |||||
Amphenol Industrial Operations | Marine Military | N | MIL-DTL-5015 | Copper Alloy | Silver | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Female Sockets Plug | Backshell Coupling Nut | Free Hanging (In-Line) | Unshielded | 7 | 27 | 24 | Environment Resistant | 1250 VAC 1750 VDC | Military | 13 A | ||
Amphenol Industrial Operations | Marine Military | N | MIL-DTL-5015 | Copper Alloy | Silver | 24-21 | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Female Sockets Plug | Backshell Coupling Nut | Free Hanging (In-Line) | Unshielded | 10 | Environment Resistant | 900 VAC 1250 VDC | Military | 13 A 46 A | |||
Amphenol Industrial Operations | |||||||||||||||||||||||||
Amphenol Industrial Operations | Marine Military | N | MIL-DTL-5015 | Copper Alloy | Silver | 24-9 | Olive Drab Chromate over Cadmium | Olive Drab | Aluminum Alloy | Neoprene | -55 °C | 125 °C | Metal | Male Pins Plug | Backshell Coupling Nut | Free Hanging (In-Line) | Unshielded | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.02 | |
| 10 | $ 41.31 | |||
| 25 | $ 39.72 | |||
| 50 | $ 38.40 | |||
| 100 | $ 36.28 | |||
| 250 | $ 35.22 | |||
Description
General part information
MS3106A24 Series
9 Position Circular Connector Plug, Male Pins Solder Cup
