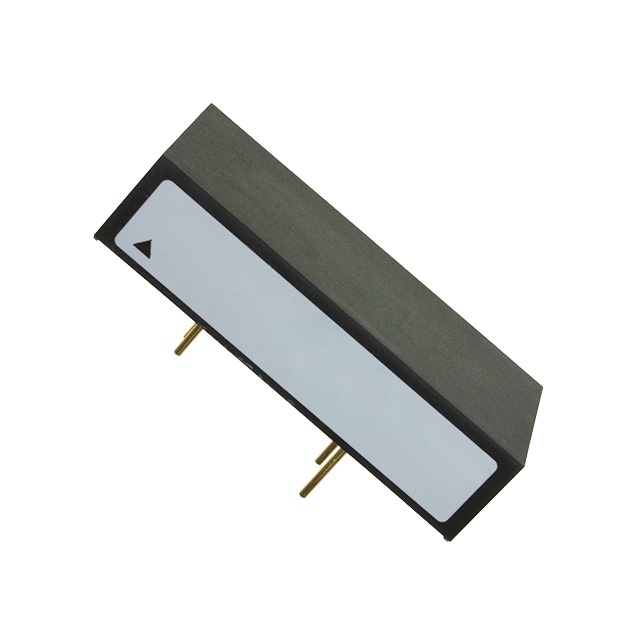

BWR-15/575-D12A-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 17W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 17W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Power (Watts)	Mounting Type	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 2	Voltage - Input (Max) [Max]	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Voltage - Isolation	Features	Current - Output (Max)	Efficiency
Murata Power Solutions Inc. BWR-15/500-D5A-C	8-DIP Module 7 Leads	15 W	Through Hole	2	500 mA	500 mA	4.7 V	100 °C	-40 °C	ITE (Commercial)	-15 V	7.5 V	Isolated Module	50.8 mm	2 in	0.45 "	2 in	50.8 mm	11.4 mm	15 V	1000 V
Murata Power Solutions Inc. BWR-15/575-D24A-C	6-DIP Module	17 W	Through Hole	2	575 mA		18 V	100 °C	-40 °C	ITE (Commercial)	-15 V	36 V	Isolated Module	50.8 mm	2 in	0.47 "	25.4 mm	25.4 mm	11.8 mm	15 V	1.5 kV	OCP OTP OVP Remote On/Off	575 mA	84 %
Murata Power Solutions Inc. BWR-15/575-D12A-C	6-DIP Module	17 W	Through Hole	2	575 mA		10 VDC	100 °C	-40 °C	ITE (Commercial)	-15 V	18 V	Isolated Module	50.8 mm	2 in	0.47 "	25.4 mm	25.4 mm	11.8 mm	15 V	1.5 kV	OCP OTP OVP Remote On/Off	575 mA	84 %
Murata Power Solutions Inc. BWR-15/670-D12A-C	8-DIP Module 7 Leads	20 W	Through Hole	2	670 mA		9 V	100 °C	-40 °C	ITE (Commercial)	-15 V	36 V	Isolated Module	50.8 mm	2 in	0.45 "	2 in	50.8 mm	11.4 mm	15 V	1000 V		670 mA	83 %
Murata Power Solutions Inc. BWR-15/330-D12A-C	5-DIP Module	10 W	Through Hole	2	330 mA		9 V	100 °C	-40 °C	ITE (Commercial)	-15 V	18 V	Isolated Module	50.8 mm	2 in	0.38 in	25.4 mm	25.4 mm	9.7 mm	15 V	1000 V		330 mA	84 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 575mA, 575mA 10V - 18V Input
