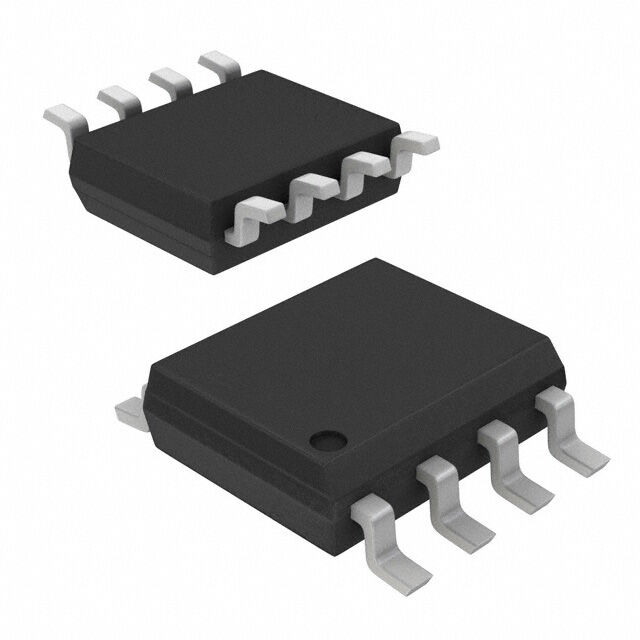

AO4614BL_DELTA

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N/P-CH 40V 6A 8SOIC

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N/P-CH 40V 6A 8SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	AO4614BL_DELTA

Configuration	N and P-Channel
Current - Continuous Drain (Id) @ 25°C	5 A, 6 A
Drain to Source Voltage (Vdss)	40 V
Gate Charge (Qg) (Max) @ Vgs	10.8 nC, 22 nC
Input Capacitance (Ciss) (Max) @ Vds	650 pF, 1175 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Power - Max [Max]	2 W
Rds On (Max) @ Id, Vgs	30 mOhm, 45 mOhm
Supplier Device Package	8-SOIC
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	3 V

Part	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Rds On (Max) @ Id, Vgs	Power - Max [Max]	Configuration	Technology	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Vgs(th) (Max) @ Id	FET Feature
Alpha & Omega Semiconductor Inc. AO4614BL_DELTA	5 A 6 A	10.8 nC 22 nC	-55 °C	150 °C	Surface Mount	30 mOhm 45 mOhm	2 W	N and P-Channel	MOSFET (Metal Oxide)	40 V	650 pF 1175 pF	8-SOIC	3.9 mm	0.154 in	8-SOIC	3 V
Alpha & Omega Semiconductor Inc. AO4614BL_201	5 A 6 A	10.8 nC 22 nC	-55 °C	150 °C	Surface Mount	30 mOhm 45 mOhm	2 W	N and P-Channel	MOSFET (Metal Oxide)	40 V	650 pF 1175 pF	8-SOIC	3.9 mm	0.154 in	8-SOIC	3 V
Alpha & Omega Semiconductor Inc. AO4614B	5 A 6 A	10.8 nC	-55 °C	150 °C	Surface Mount	30 mOhm	2 W	N and P-Channel	MOSFET (Metal Oxide)	40 V	650 pF	8-SOIC	3.9 mm	0.154 in	8-SOIC	3 V	Logic Level Gate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 40V 6A (Ta), 5A (Ta) 2W Surface Mount 8-SOIC
