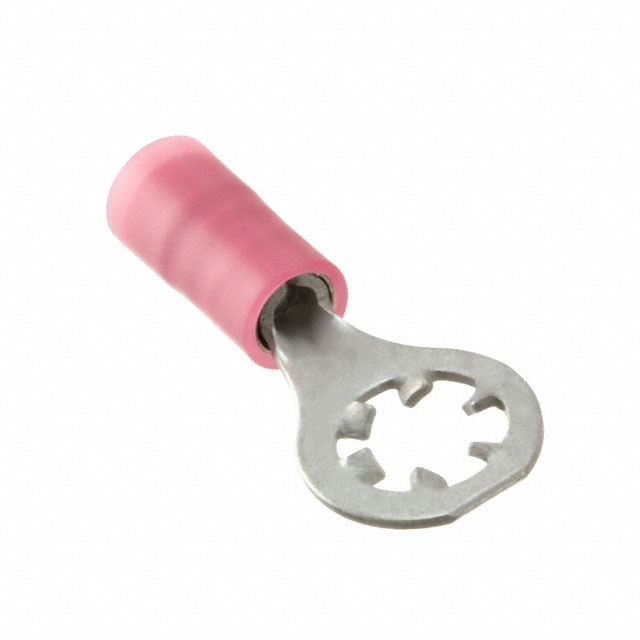

0190770013

Active

Molex

CONN RING CIRC 18-22AWG #10

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190770013

Active

Molex

CONN RING CIRC 18-22AWG #10

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190770013

Color	Red
Contact Finish	Electro-Tin
Contact Material	Steel
Features	Inner Teeth, Serrated Termination
Insulation	Insulated
Insulation Diameter [diameter]	0.138 in
Insulation Diameter [diameter]	3.51 mm
Length - Overall	23.62 mm
Length - Overall [x]	0.93 in
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	50 mils
Thickness	0.05 in
Width - Outer Edges	0.385 in
Width - Outer Edges	9.78 mm
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019077 Series

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall	Terminal Type	Color	Width - Outer Edges	Width - Outer Edges	Thickness	Thickness	Mounting Type	Material - Insulation	Termination	Features	Contact Material	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Insulation	Stud/Tab Size
Molex 0190770001	0.138 in	3.51 mm	0.93 in	23.62 mm	Circular	Red	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Brass	6 Stud	22 AWG	17.5 AWG	Electro-Tin	Insulated
Molex 0190770009	0.138 in	3.51 mm	0.93 in	23.62 mm	Circular	Red	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Steel	6 Stud	22 AWG	17.5 AWG	Electro-Tin	Insulated
Molex 0190770002	0.138 in	3.51 mm	0.93 in	23.62 mm	Circular	Red	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Brass	6 Stud	22 AWG	17.5 AWG	Electro-Tin	Insulated
Molex 0190770013	0.138 in	3.51 mm	0.93 in	23.62 mm	Circular	Red	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Steel	10 Stud	22 AWG	17.5 AWG	Electro-Tin	Insulated
Molex 0190770024	0.169 in	4.29 mm	0.93 in	23.62 mm	Circular	Blue	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Steel				Electro-Tin	Insulated	8 Stud
Molex 0190770006	0.138 in	3.51 mm	0.93 in	23.62 mm	Circular	Red	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Brass		22 AWG	17.5 AWG	Electro-Tin	Insulated	8 Stud
Molex 0190770005	0.138 in	3.51 mm	0.93 in	23.62 mm	Circular	Red	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Brass		22 AWG	17.5 AWG	Electro-Tin	Insulated	8 Stud
Molex 0190770019	0.169 in	4.29 mm	0.93 in	23.62 mm	Circular	Blue	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Brass	10 Stud			Electro-Tin	Insulated
Molex 0190770012	0.138 in	3.51 mm	0.93 in	23.62 mm	Circular	Red	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Steel		22 AWG	17.5 AWG	Electro-Tin	Insulated	8 Stud
Molex 0190770026	0.169 in	4.29 mm	0.93 in	23.62 mm	Circular	Blue	0.385 in	9.78 mm	50 mils	0.05 in	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	Inner Teeth Serrated Termination	Steel	10 Stud			Electro-Tin	Insulated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	16000	$ 0.14

Description

General part information

019077 Series

Ring Terminal Connector 10 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
