09300480291

Active

HARTING Technology Group

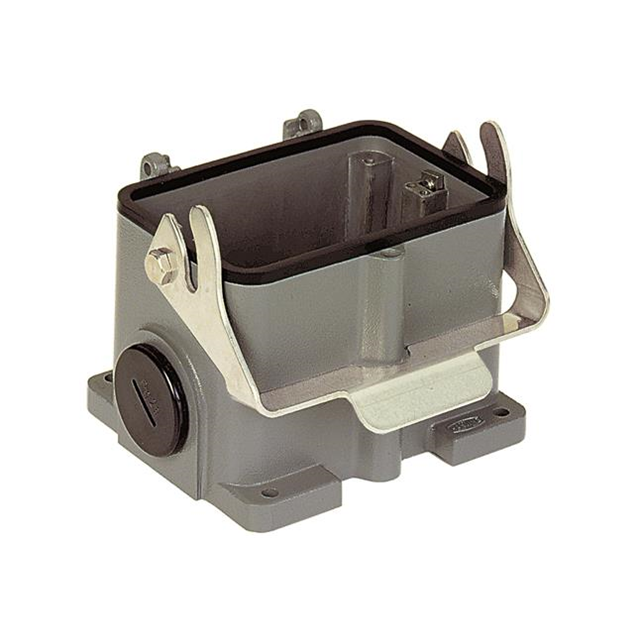

HAN B BASE SURFACE HC 1 LEVER 2 ENTRIES ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

09300480291

Active

HARTING Technology Group

HAN B BASE SURFACE HC 1 LEVER 2 ENTRIES ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300480291

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	48 B
Size / Dimension [x]	141 mm
Size / Dimension [x]	5.551 in
Size / Dimension [y]	120 mm
Size / Dimension [y]	4.724 in
Size / Dimension [z]	3.898 in
Size / Dimension [z]	99 mm
Style	Side Entry
Thread Size	PG36

09300480 Series

Part	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size	Style	Ingress Protection	Lock Location	Housing Material	Connector Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Housing Color	Thread Size	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09300480301	Powder Coated	125 °C	-40 °C	48 B	Bottom Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Base - Panel Mount	6.496 in	165 mm	96 mm	40 mm	3.78 in	1.575 in	Gray
HARTING Technology Group 09300480440	Powder Coated	125 °C	-40 °C	48 B	Top Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in	Gray	PG29
HARTING Technology Group 09300480441	Powder Coated	125 °C	-40 °C	48 B	Top Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in	Gray	PG36
HARTING Technology Group 09300480291	Powder Coated	125 °C	-40 °C	48 B	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Base - Box Mount	5.551 in	141 mm			4.724 in	3.898 in	Gray	PG36	120 mm	99 mm
HARTING Technology Group 09300480442	Powder Coated	125 °C	-40 °C	48 B	Top Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in	Gray	PG42
HARTING Technology Group 09300480541	Powder Coated	125 °C	-40 °C	48 B	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in	Gray	PG36
HARTING Technology Group 09300480317	Powder Coated	125 °C	-40 °C	48 B	Bottom Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Base - Panel Mount	6.496 in	165 mm	96 mm	40 mm	3.78 in	1.575 in	Gray
HARTING Technology Group 09300480404				48 B	Bottom Entry		Locking Clip (1) on Base Bottom		Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 168.92
		10	$ 155.01
		25	$ 149.05
		50	$ 144.08
Newark	Each	1	$ 176.92
		10	$ 166.98
		25	$ 162.01
		50	$ 150.08
		100	$ 142.13
TME	N/A	1	$ 156.86
		3	$ 139.61
		5	$ 123.19

Description

General part information

09300480 Series

Base - Box Mount Connector Side Entry PG36 48B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

Technical Data Sheet EN

Datasheet
