09300480301

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PLASTIC COVER, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 48B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09300480301

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PLASTIC COVER, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 48B

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300480301

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	48 B
Size / Dimension [x]	6.496 in
Size / Dimension [x]	165 mm
Size / Dimension [y]	96 mm
Size / Dimension [y]	3.78 in
Size / Dimension [z]	40 mm
Size / Dimension [z]	1.575 in
Style	Bottom Entry

09300480 Series

Part	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size	Style	Ingress Protection	Lock Location	Housing Material	Connector Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Housing Color	Thread Size	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09300480301	Powder Coated	125 °C	-40 °C	48 B	Bottom Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Base - Panel Mount	6.496 in	165 mm	96 mm	40 mm	3.78 in	1.575 in	Gray
HARTING Technology Group 09300480440	Powder Coated	125 °C	-40 °C	48 B	Top Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in	Gray	PG29
HARTING Technology Group 09300480441	Powder Coated	125 °C	-40 °C	48 B	Top Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in	Gray	PG36
HARTING Technology Group 09300480291	Powder Coated	125 °C	-40 °C	48 B	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Base - Box Mount	5.551 in	141 mm			4.724 in	3.898 in	Gray	PG36	120 mm	99 mm
HARTING Technology Group 09300480442	Powder Coated	125 °C	-40 °C	48 B	Top Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in	Gray	PG42
HARTING Technology Group 09300480541	Powder Coated	125 °C	-40 °C	48 B	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in	Gray	PG36
HARTING Technology Group 09300480317	Powder Coated	125 °C	-40 °C	48 B	Bottom Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Base - Panel Mount	6.496 in	165 mm	96 mm	40 mm	3.78 in	1.575 in	Gray
HARTING Technology Group 09300480404				48 B	Bottom Entry		Locking Clip (1) on Base Bottom		Hood	5.197 in	132 mm	90 mm	97.5 mm	3.543 in	3.839 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 197.85
		10	$ 152.08
		25	$ 138.76
		50	$ 130.09
Newark	Each	1	$ 152.65
		5	$ 141.21
		10	$ 129.77
		25	$ 121.66
		50	$ 115.86

Description

General part information

09300480 Series

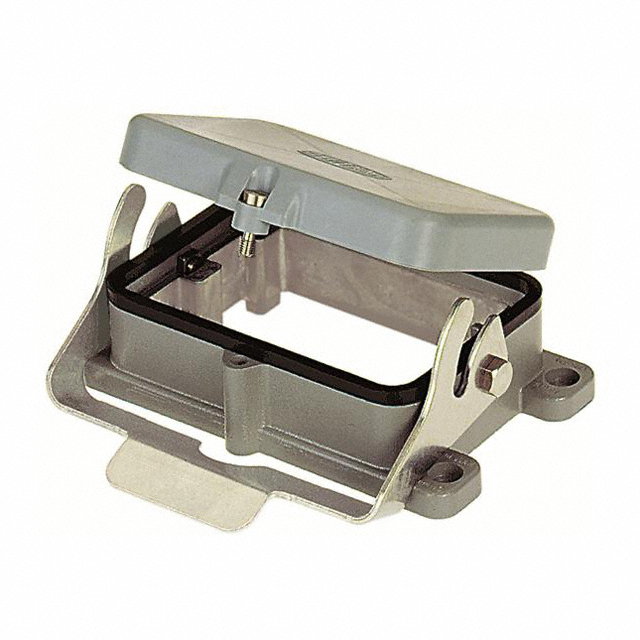

The 09300480301 is a gray Han 48B Base/Bulkhead Mounted Housing made of die-cast aluminum with powder coated finish. The bulkhead mounted housing comes with a thermoplastic cover, NBR seal and stainless steel single locking lever.
