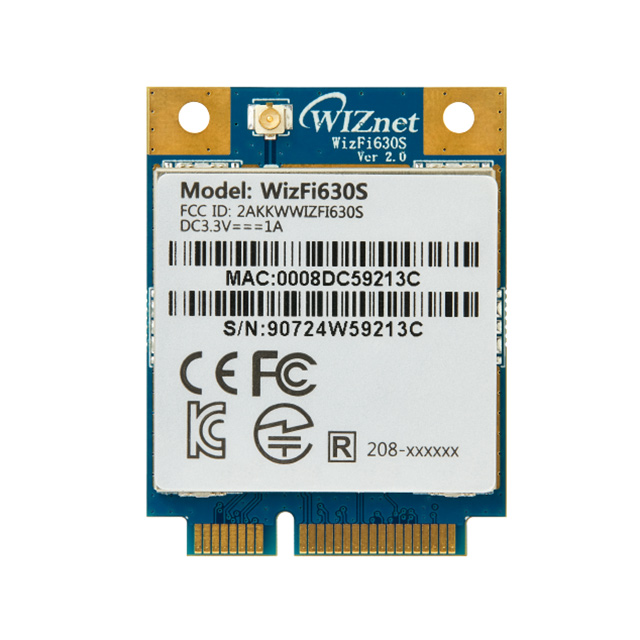

WIZFI630S

Unknown

WIZnet

RF TXRX MOD WIFIU.FL CARD EDGE

Search across all available documentation for this part.

Unknown

WIZnet

RF TXRX MOD WIFIU.FL CARD EDGE

Technical Specifications

Parameters and characteristics for this part

Specification	WIZFI630S

Antenna Type	Antenna Not Included, U.FL
Data Rate	150 Mbps
Frequency	2.4 GHz
Memory Size	32 MB, 4 MB
Modulation	OFDM, DQPSK, BPSK, DSSS, DBPSK, QPSK, 16QAM, 64QAM, CCK
Mounting Type	Card Edge
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Package / Case	Module
Power - Output	17 dBm
Protocol	802.11b/g/n
RF Family/Standard	WiFi
Sensitivity	-89 dBm
Serial Interfaces	UART, USB
Voltage - Supply	3.3 V

Part	Protocol	Memory Size	Data Rate	Frequency	Antenna Type	Power - Output	Package / Case	Modulation	Voltage - Supply	RF Family/Standard	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Serial Interfaces	Mounting Type	Sensitivity	For Use With/Related Products	Supplied Contents	Type
WIZnet WIZFI630S	802.11b/g/n	4 MB 32 MB	150 Mbps	2.4 GHz	Antenna Not Included U.FL	17 dBm	Module	16QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK	3.3 V	WiFi	-10 °C	158 °F	UART USB	Card Edge	-89 dBm
WIZnet WIZFI630S-EVB				2.4 GHz												WizFi630S	Board(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Antenna Not Included, U.FL Card Edge

Technical documentation and resources

No documents available
