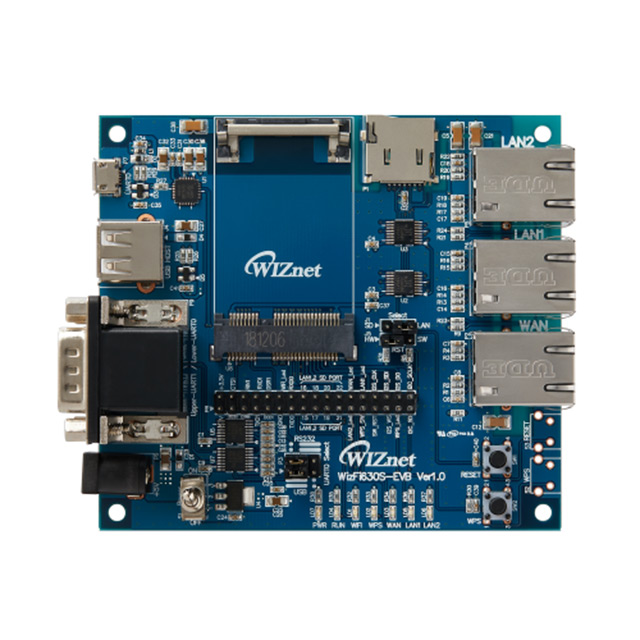

WIZFI630S-EVB

Active

WIZnet

EVALUATION BOARD FOR WIZFI630S

Search across all available documentation for this part.

Active

WIZnet

EVALUATION BOARD FOR WIZFI630S

Technical Specifications

Parameters and characteristics for this part

Specification	WIZFI630S-EVB

For Use With/Related Products	WizFi630S
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)

Part	Protocol	Memory Size	Data Rate	Frequency	Antenna Type	Power - Output	Package / Case	Modulation	Voltage - Supply	RF Family/Standard	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Serial Interfaces	Mounting Type	Sensitivity	For Use With/Related Products	Supplied Contents	Type
WIZnet WIZFI630S	802.11b/g/n	4 MB 32 MB	150 Mbps	2.4 GHz	Antenna Not Included U.FL	17 dBm	Module	16QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK	3.3 V	WiFi	-10 °C	158 °F	UART USB	Card Edge	-89 dBm
WIZnet WIZFI630S-EVB				2.4 GHz												WizFi630S	Board(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 60.00

General part information

WizFi630S - Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board

Technical documentation and resources

No documents available
