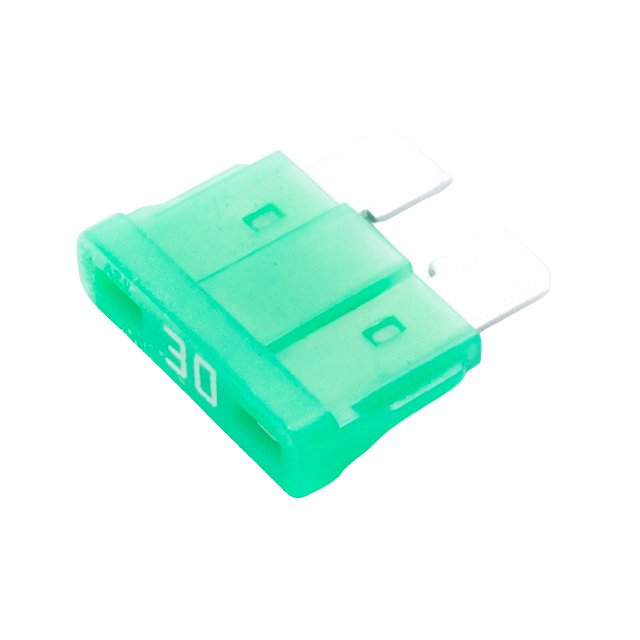

ANR-I-30A

Active

OptiFuse

FUSE AUTO 30A 32VDC BLADE ATO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 30A 32VDC BLADE ATO

Technical Specifications

Parameters and characteristics for this part

Specification	ANR-I-30A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Green
Current Rating (Amps)	30 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

Part	Mounting Type	Package / Case	Current Rating (Amps)	Response Time	Voltage Rating - DC	Fuse Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Approval Agency	Breaking Capacity @ Rated Voltage
OptiFuse ANR-I-15A	Requires Holder	ATC ATO Blade	15 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Blue	ISO SAE	1 kA
OptiFuse ANR-I-25A	Requires Holder	ATC ATO Blade	25 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Clear	ISO SAE	1 kA
OptiFuse ANR-I-4A	Requires Holder	ATC ATO Blade	4 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Pink	ISO SAE	1 kA
OptiFuse ANR-I-7.5A	Requires Holder	ATC ATO Blade	7.5 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Brown	ISO SAE	1 kA
OptiFuse ANR-I-40A	Requires Holder	ATC ATO Blade	40 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm		ISO SAE	1 kA
OptiFuse ANR-I-20A	Requires Holder	ATC ATO Blade	20 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Yellow	ISO SAE	1 kA
OptiFuse ANR-I-30A	Requires Holder	ATC ATO Blade	30 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Green	ISO SAE	1 kA
OptiFuse ANR-I-5A	Requires Holder	ATC ATO Blade	5 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Tan	ISO SAE	1 kA
OptiFuse ANR-I-3A	Requires Holder	ATC ATO Blade	3 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Violet	ISO SAE	1 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
