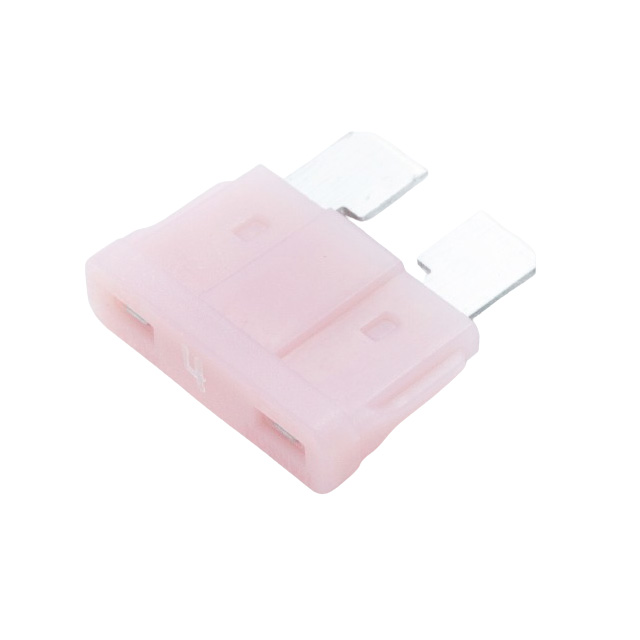

ANR-I-4A

Active

OptiFuse

FUSE AUTO 4A 32VDC BLADE ATO/ATC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 4A 32VDC BLADE ATO/ATC

Technical Specifications

Parameters and characteristics for this part

Specification	ANR-I-4A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Pink
Current Rating (Amps)	4 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

Part	Mounting Type	Package / Case	Current Rating (Amps)	Response Time	Voltage Rating - DC	Fuse Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Approval Agency	Breaking Capacity @ Rated Voltage
OptiFuse ANR-I-15A	Requires Holder	ATC ATO Blade	15 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Blue	ISO SAE	1 kA
OptiFuse ANR-I-25A	Requires Holder	ATC ATO Blade	25 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Clear	ISO SAE	1 kA
OptiFuse ANR-I-4A	Requires Holder	ATC ATO Blade	4 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Pink	ISO SAE	1 kA
OptiFuse ANR-I-7.5A	Requires Holder	ATC ATO Blade	7.5 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Brown	ISO SAE	1 kA
OptiFuse ANR-I-40A	Requires Holder	ATC ATO Blade	40 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm		ISO SAE	1 kA
OptiFuse ANR-I-20A	Requires Holder	ATC ATO Blade	20 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Yellow	ISO SAE	1 kA
OptiFuse ANR-I-30A	Requires Holder	ATC ATO Blade	30 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Green	ISO SAE	1 kA
OptiFuse ANR-I-5A	Requires Holder	ATC ATO Blade	5 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Tan	ISO SAE	1 kA
OptiFuse ANR-I-3A	Requires Holder	ATC ATO Blade	3 A	Fast Blow	32 V	Automotive	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Violet	ISO SAE	1 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
