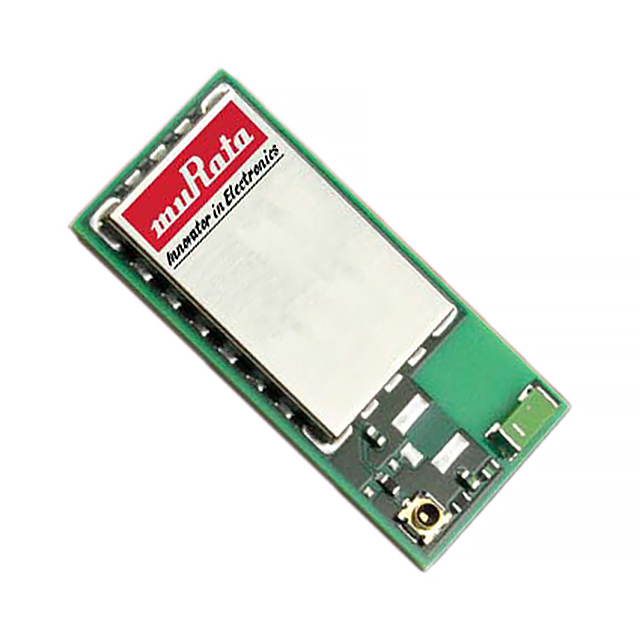

88-00153-00

Obsolete

Murata Power Solutions Inc.

RF TXRX MODULE WIFI CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

88-00153-00

Obsolete

Murata Power Solutions Inc.

RF TXRX MODULE WIFI CHIP SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	88-00153-00

Antenna Type	Integrated, Chip
Current - Receiving	70 mA
Current - Transmitting [Max]	315 mA
Current - Transmitting [Min]	225 mA
Data Rate	65 Mbps
Frequency	2.4 GHz
Modulation	DSSS, OFDM, CCK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	18.5 dBm
Protocol	802.11b/g/n
RF Family/Standard	WiFi
Serial Interfaces	SDIO, JTAG, SPI
Utilized IC / Part	BCM43362
Voltage - Supply [Max]	4 V
Voltage - Supply [Min]	3 V

88-001 Series

Part	Supplied Contents	Type	For Use With/Related Products	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Memory Size	Data Rate	Serial Interfaces	Protocol	RF Family/Standard	Mounting Type	Power - Output	Current - Receiving	Package / Case	Antenna Type	Current - Transmitting [Max]	Current - Transmitting [Min]	Modulation	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Transmitting	Sensitivity
Murata Power Solutions Inc. 88-00153-85	Board(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	SN8000	2.4 GHz
Murata Power Solutions Inc. 88-00158-00				2.4 GHz	85 °C	-40 °C	BCM43362	1 MB 128 kB	65 Mbps	I2C I2S SPI UART	802.11b/g/n	WiFi	Surface Mount	18 dBm	110 mA	Module	Integrated Chip	370 mA	280 mA	CCK DSSS	3.6 V	2 V
Murata Power Solutions Inc. 88-00153-00				2.4 GHz	85 °C	-40 °C	BCM43362		65 Mbps	JTAG SDIO SPI	802.11b/g/n	WiFi	Surface Mount	18.5 dBm	70 mA	Module	Integrated Chip	315 mA	225 mA	CCK DSSS OFDM	4 V	3 V
Murata Power Solutions Inc. 88-00158-95	Board(s) Cable(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	SN8205	2.4 GHz
Murata Power Solutions Inc. 88-00158-97	Board(s) Cable(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	SN8205UFL	2.4 GHz
Murata Power Solutions Inc. 88-00153-87	Board(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	SN8000UFL	2.4 GHz
Murata Power Solutions Inc. 88-00154-00				2.4 GHz 5 GHz	85 °C	-40 °C	WL1857		65 Mbps		Bluetooth v4.0	Bluetooth	Surface Mount	15 dBm	57 mA	62-SMD Module	Integrated Trace				4.2 V	3 V	408 mA	-90 dBm
Murata Power Solutions Inc. 88-00151-95	Board(s) Cable(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	SN8200	2.4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

88-001 Series

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Chip Surface Mount
