RB32P04G10G

Active

Serpac

BOX PLASTIC GRAY 2.56"L X 1.97"W

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC GRAY 2.56"L X 1.97"W

Technical Specifications

Parameters and characteristics for this part

Specification	RB32P04G10G

Area (L x W)	32.5 cm²
Area (L x W)	5.03 in²
Color	Gray
Container Type	Box
Design	Cover Included
Height [z]	35 mm
Height [z]	1.378 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	2.559 in
Size / Dimension [x]	65 mm
Size / Dimension [y]	50.01 mm
Size / Dimension [y]	1.969 in
Thickness	0.098 in
Thickness	2.49 mm

Part	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Container Type	Material Flammability Rating	Design	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Ratings	Thickness	Thickness
Serpac RB32P04G10C	Plastic Polycarbonate	50.01 mm	1.969 in	2.559 in	65 mm	Clear Gray Cover/Door	Box	UL94 V-0	Cover Included	32.5 cm²	5.03 in²	35 mm	1.378 in	IP67 NEMA 4	0.098 in	2.49 mm
Serpac RB32P04G10G	Plastic Polycarbonate	50.01 mm	1.969 in	2.559 in	65 mm	Gray	Box	UL94 V-0	Cover Included	32.5 cm²	5.03 in²	35 mm	1.378 in	IP67 NEMA 4	0.098 in	2.49 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

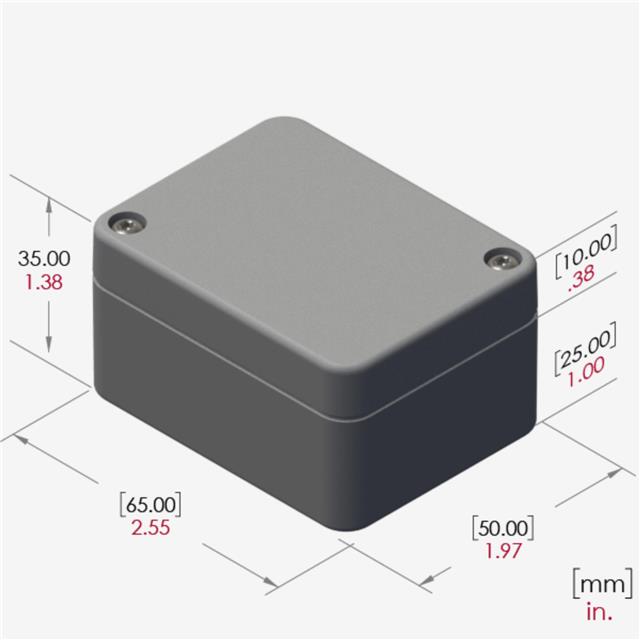

Box Plastic, Polycarbonate Gray Cover Included 2.559" L x 1.969" W (65.00mm x 50.01mm) X 1.378" (35.00mm)
