RB32P04G10C

Active

Serpac

BOX PLSTC CL/GRAY 2.56" X 1.97"

Search across all available documentation for this part.

Active

Serpac

BOX PLSTC CL/GRAY 2.56" X 1.97"

Technical Specifications

Parameters and characteristics for this part

Specification	RB32P04G10C

Area (L x W)	32.5 cm²
Area (L x W)	5.03 in²
Color	Clear, Gray Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	35 mm
Height [z]	1.378 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	2.559 in
Size / Dimension [x]	65 mm
Size / Dimension [y]	50.01 mm
Size / Dimension [y]	1.969 in
Thickness	0.098 in
Thickness	2.49 mm

Part	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Container Type	Material Flammability Rating	Design	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Ratings	Thickness	Thickness
Serpac RB32P04G10C	Plastic Polycarbonate	50.01 mm	1.969 in	2.559 in	65 mm	Clear Gray Cover/Door	Box	UL94 V-0	Cover Included	32.5 cm²	5.03 in²	35 mm	1.378 in	IP67 NEMA 4	0.098 in	2.49 mm
Serpac RB32P04G10G	Plastic Polycarbonate	50.01 mm	1.969 in	2.559 in	65 mm	Gray	Box	UL94 V-0	Cover Included	32.5 cm²	5.03 in²	35 mm	1.378 in	IP67 NEMA 4	0.098 in	2.49 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.55

General part information

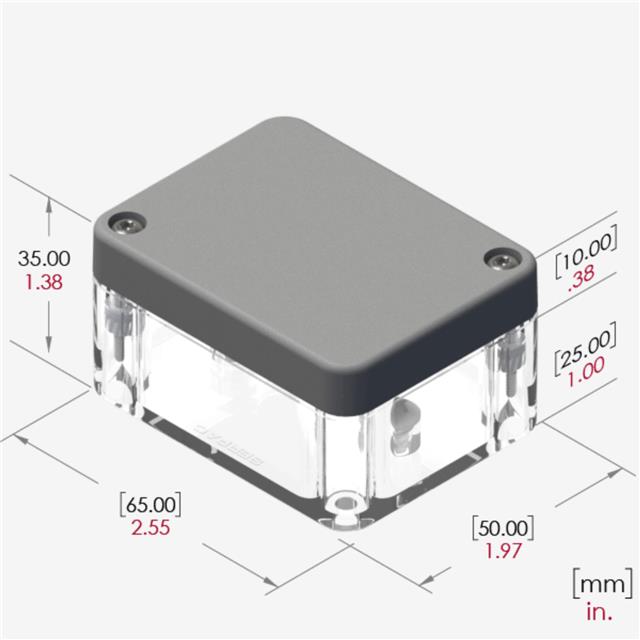

Box Plastic, Polycarbonate Clear, Gray Cover/Door Cover Included 2.559" L x 1.969" W (65.00mm x 50.01mm) X 1.378" (35.00mm)

Technical documentation and resources

No documents available
