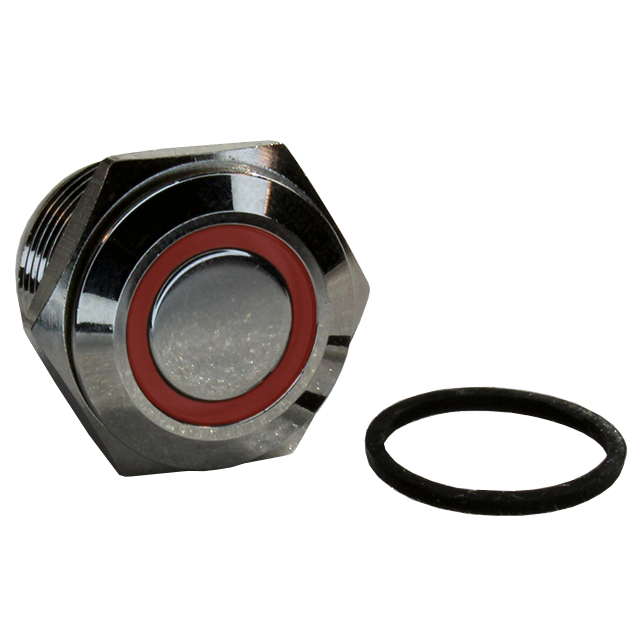

BH16NBSBRG

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BH16NBSBRG

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BH16NBSBRG

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A, 1 A
Electrical Life	50000 Cycles
Features	Stainless Steel
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2.1 VDC, 3.3 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

BH16NB Series

Part	Electrical Life	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Actuator Marking	Illumination Type, Color	Color - Actuator/Cap	Type	Mounting Type	Actuator Type	Features	Current Rating (Amps)	Ingress Protection	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Illumination Voltage (Nominal)
CIT Relay and Switch BH16NBSBB	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	Blue LED	Silver	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round	Stainless Steel	1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	3.3 VDC
CIT Relay and Switch BH16NBSBG	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST-NO	No Marking	Green LED	Silver	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round		1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	3.3 VDC
CIT Relay and Switch BH16NBBBRG	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	Green/Red LED	Black	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round		1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	2.1 VDC 3.3 VDC
CIT Relay and Switch BH16NBBBG	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	Green LED	Black	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round		1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	3.3 VDC
CIT Relay and Switch BH16NBSBRG	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	Green/Red LED	Silver	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round	Stainless Steel	1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	2.1 VDC 3.3 VDC
CIT Relay and Switch BH16NBBBR	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	LED Red	Black	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round		1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	2.1 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.55
		10	$ 12.24
		25	$ 11.65
		40	$ 11.06
		80	$ 10.67
		240	$ 10.01
		440	$ 9.16
		960	$ 8.10

Description

General part information

BH16NB Series

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
