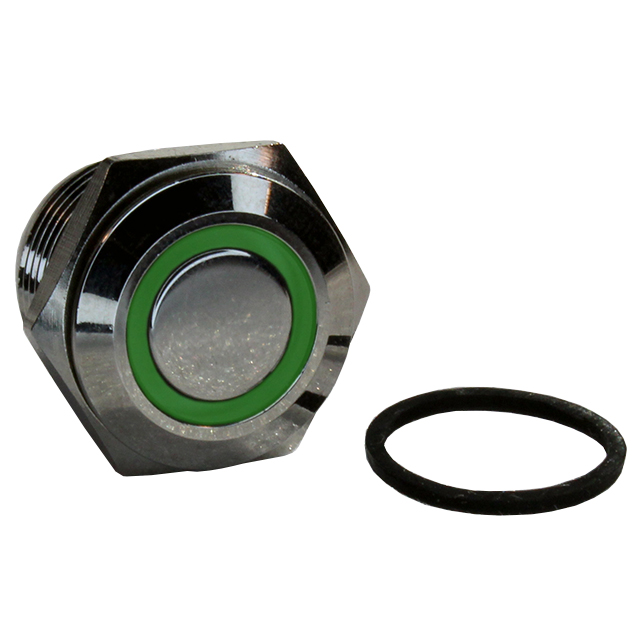

BH16NBSBG

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BH16NBSBG

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BH16NBSBG

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A, 1 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	3.3 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

BH16NB Series

Part	Electrical Life	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Actuator Marking	Illumination Type, Color	Color - Actuator/Cap	Type	Mounting Type	Actuator Type	Features	Current Rating (Amps)	Ingress Protection	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Illumination Voltage (Nominal)
CIT Relay and Switch BH16NBSBB	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	Blue LED	Silver	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round	Stainless Steel	1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	3.3 VDC
CIT Relay and Switch BH16NBSBG	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST-NO	No Marking	Green LED	Silver	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round		1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	3.3 VDC
CIT Relay and Switch BH16NBBBRG	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	Green/Red LED	Black	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round		1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	2.1 VDC 3.3 VDC
CIT Relay and Switch BH16NBBBG	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	Green LED	Black	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round		1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	3.3 VDC
CIT Relay and Switch BH16NBSBRG	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	Green/Red LED	Silver	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round	Stainless Steel	1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	2.1 VDC 3.3 VDC
CIT Relay and Switch BH16NBBBR	50000 Cycles	Solder Lug	Off-Mom	16 mm	SPST	No Marking	LED Red	Black	Anti-Vandal Illuminated	Panel Mount Front	Button Flush Round		1 A 2 A	IP67 - Dust Tight Waterproof	36 VDC	55 °C	-25 °C	125 V	2.1 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.98
		10	$ 10.82
		25	$ 10.30
		40	$ 9.78
		80	$ 9.43
		240	$ 8.85
		440	$ 8.10
		960	$ 7.16

Description

General part information

BH16NB Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
