R191764000

Active

Radiall USA, Inc.

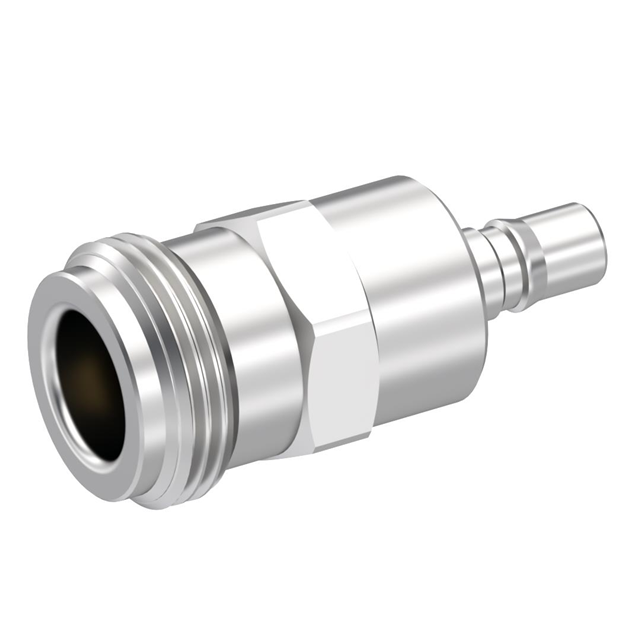

N FEMALE - QMA FEMALE STRAIGHT A

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N FEMALE - QMA FEMALE STRAIGHT A

Technical Specifications

Parameters and characteristics for this part

Specification	R191764000

Adapter Series	N to QMA
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	QMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Impedance	Conversion Type	Convert From (Adapter End)	Adapter Series	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Body Finish	Center Gender	Dielectric Material	Mounting Type	Style	Frequency - Max [Max]	Center Contact Material	Adapter Type	Fastening Type	Center Contact Plating
Radiall USA, Inc. R191760010	50 Ohms	Between Series	Female Socket N Jack	N to QN	Brass	-55 °C	125 °C	Female Socket QN Jack	White Bronze	Female to Female	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	6000 MHz	Beryllium Copper	Jack to Jack	Push-Pull Threaded
Radiall USA, Inc. R191763000	50 Ohms	Between Series	Female Socket N Jack	N to QMA	Brass	-40 °C	80 C	Male Pin QMA Plug	White Bronze		Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	6000 MHz	Beryllium Copper	Plug to Jack	Snap-On Threaded	Gold
Radiall USA, Inc. R191764000	50 Ohms	Between Series	Female Socket N Jack	N to QMA	Brass	-40 °C	80 C	Female Socket QMA Jack	White Bronze	Female to Female	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	6000 MHz	Beryllium Copper	Jack to Jack	Snap-On Threaded	Gold
Radiall USA, Inc. R191762000	50 Ohms	Between Series	N Plug Male Pin	N to QMA	Brass	-40 °C	80 C	Female Socket QMA Jack	White Bronze		Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	6000 MHz	Beryllium Copper	Plug to Jack	Snap-On Threaded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 159.61

General part information

Adapter Coaxial Connector N Jack, Female Socket To QMA Jack, Female Socket 50 Ohms
