R191760010

Active

Radiall USA, Inc.

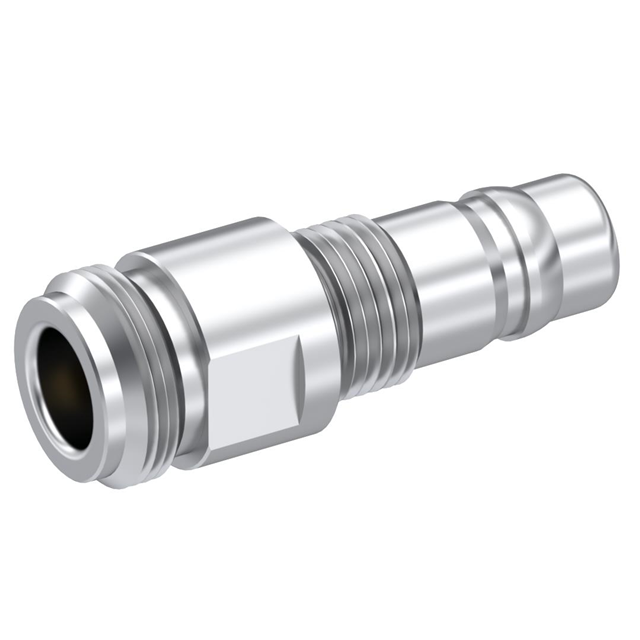

N FEMALE - QN FEMALE STRAIGHT AD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N FEMALE - QN FEMALE STRAIGHT AD

Technical Specifications

Parameters and characteristics for this part

Specification	R191760010

Adapter Series	N to QN
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	QN Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Push-Pull
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Impedance	Conversion Type	Convert From (Adapter End)	Adapter Series	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Body Finish	Center Gender	Dielectric Material	Mounting Type	Style	Frequency - Max [Max]	Center Contact Material	Adapter Type	Fastening Type	Center Contact Plating
Radiall USA, Inc. R191760010	50 Ohms	Between Series	Female Socket N Jack	N to QN	Brass	-55 °C	125 °C	Female Socket QN Jack	White Bronze	Female to Female	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	6000 MHz	Beryllium Copper	Jack to Jack	Push-Pull Threaded
Radiall USA, Inc. R191763000	50 Ohms	Between Series	Female Socket N Jack	N to QMA	Brass	-40 °C	80 C	Male Pin QMA Plug	White Bronze		Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	6000 MHz	Beryllium Copper	Plug to Jack	Snap-On Threaded	Gold
Radiall USA, Inc. R191764000	50 Ohms	Between Series	Female Socket N Jack	N to QMA	Brass	-40 °C	80 C	Female Socket QMA Jack	White Bronze	Female to Female	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	6000 MHz	Beryllium Copper	Jack to Jack	Snap-On Threaded	Gold
Radiall USA, Inc. R191762000	50 Ohms	Between Series	N Plug Male Pin	N to QMA	Brass	-40 °C	80 C	Female Socket QMA Jack	White Bronze		Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	6000 MHz	Beryllium Copper	Plug to Jack	Snap-On Threaded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 121.36

General part information

Adapter Coaxial Connector N Jack, Female Socket To QN Jack, Female Socket 50 Ohms
