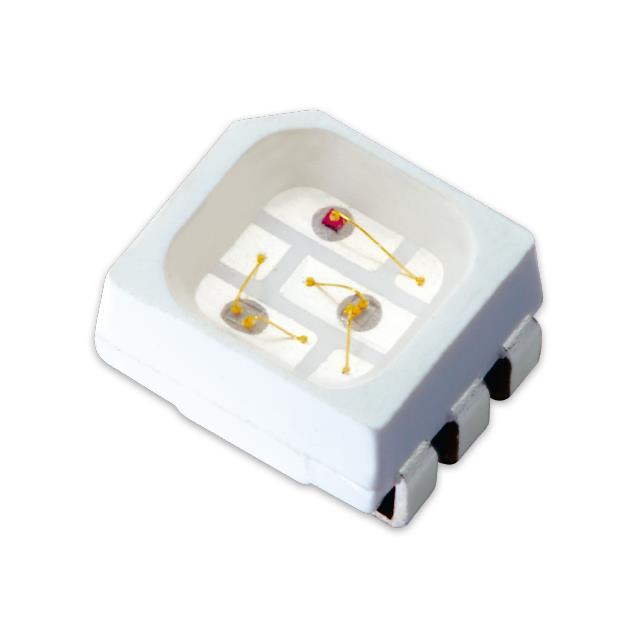

AAAF3529LSEEZGKQBKS

Active

Kingbright

LED RGB CLEAR 6SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAAF3529LSEEZGKQBKS

Active

Kingbright

LED RGB CLEAR 6SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AAAF3529LSEEZGKQBKS

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	2 mA
Current - Test [custom]	2 mA
Current - Test [custom]	2 mA
Height (Max) [Max] [z]	1.85 mm
Lens Color	Colorless
Lens Size	2.44 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	30 mcd
Millicandela Rating [custom]	20 mcd
Millicandela Rating [custom]	180 mcd
Mounting Type	Surface Mount
Package / Case	6-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	6-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	2.7 V
Voltage - Forward (Vf) (Typ) [custom]	1.8 V
Voltage - Forward (Vf) (Typ) [custom]	2.7 V
Wavelength - Dominant	465 nm, 621 nm, 525 nm
Wavelength - Peak [custom]	630 nm
Wavelength - Peak [custom]	460 nm
Wavelength - Peak [custom]	515 nm

AAAF3529 Series

Part	Lens Style	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Color	Lens Size	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Transparency	Height (Max) [Max] [z]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Configuration	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Viewing Angle	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak
Kingbright AAAF3529SEEZGKQBKS	Square with Flat Top	630 nm	460 nm	515 nm	Colorless	2.44 mm	6-PLCC	580 mcd	130 mcd	180 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	6-SMD	2 V 3.3 V 3.3 V	120 °	465 nm 525 nm 621 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red
Kingbright AAAF3529VBDSEJ3ZGS	Square with Flat Top	640 nm	465 nm	515 nm	Colorless	2.44 mm	6-PLCC	580 mcd	300 mcd	560 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	Chip LED		120 °	470 nm 525 nm 625 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red	3.3 V	3.3 V	2.2 V
Kingbright AAAF3529SEKJ3ZGKQBKS	Square with Flat Top				Colorless	2.44 mm	6-PLCC	580 mcd	130 mcd	500 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	6-SMD		120 °	465 nm 525 nm 625 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red	3.3 V	3.3 V	2.2 V	460 nm 515 nm 640 nm
Kingbright AAAF3529LSEEZGKQBKS	Square with Flat Top	630 nm	460 nm	515 nm	Colorless	2.44 mm	6-PLCC	180 mcd	30 mcd	20 mcd	Clear	1.85 mm	2 mA	2 mA	2 mA	Independent	6-SMD		120 °	465 nm 525 nm 621 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red	2.7 V	2.7 V	1.8 V
Kingbright AAAF3529SEEZGQBDS	Square with Flat Top	630 nm	460 nm	515 nm	Colorless	2.44 mm	6-PLCC	580 mcd	130 mcd	180 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	Chip LED	2 V 3.3 V 3.3 V	120 °	465 nm 525 nm 621 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.40
		10	$ 0.89
		100	$ 0.66
		500	$ 0.60
		1000	$ 0.50
	Digi-Reel®	1	$ 1.40
		10	$ 0.89
		100	$ 0.66
		500	$ 0.60
		1000	$ 0.50
	Tape & Reel (TR)	2000	$ 0.47
		6000	$ 0.46
		10000	$ 0.45

Description

General part information

AAAF3529 Series

Red, Green, Blue (RGB) 621nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.8V Red, 2.7V Green, 2.7V Blue 6-PLCC
