AAAF3529VBDSEJ3ZGS

Active

Kingbright

LED RGB CLEAR CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

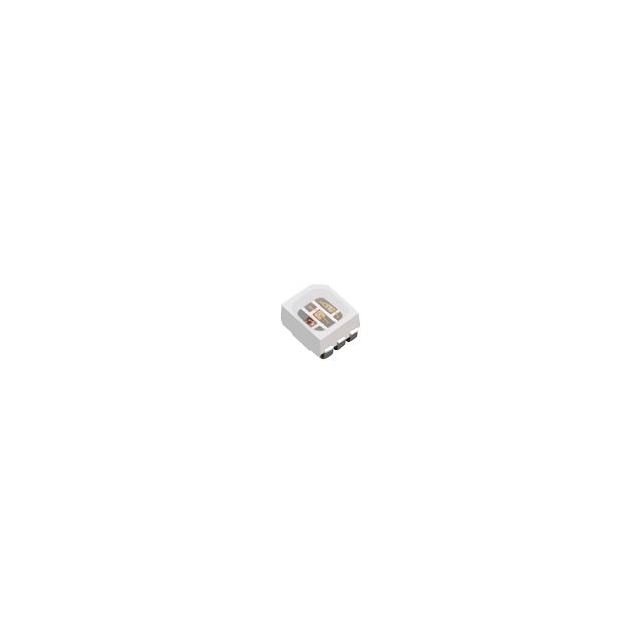

AAAF3529VBDSEJ3ZGS

Active

Kingbright

LED RGB CLEAR CHIP SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AAAF3529VBDSEJ3ZGS

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	1.85 mm
Lens Color	Colorless
Lens Size	2.44 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	560 mcd
Millicandela Rating [custom]	580 mcd
Millicandela Rating [custom]	300 mcd
Mounting Type	Surface Mount
Package / Case	6-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	Chip LED
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	2.2 V
Wavelength - Dominant	525 nm, 625 nm, 470 nm
Wavelength - Peak [custom]	515 nm
Wavelength - Peak [custom]	465 nm
Wavelength - Peak [custom]	640 nm

AAAF3529 Series

Part	Lens Style	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Color	Lens Size	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Transparency	Height (Max) [Max] [z]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Configuration	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Viewing Angle	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak
Kingbright AAAF3529SEEZGKQBKS	Square with Flat Top	630 nm	460 nm	515 nm	Colorless	2.44 mm	6-PLCC	580 mcd	130 mcd	180 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	6-SMD	2 V 3.3 V 3.3 V	120 °	465 nm 525 nm 621 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red
Kingbright AAAF3529VBDSEJ3ZGS	Square with Flat Top	640 nm	465 nm	515 nm	Colorless	2.44 mm	6-PLCC	580 mcd	300 mcd	560 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	Chip LED		120 °	470 nm 525 nm 625 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red	3.3 V	3.3 V	2.2 V
Kingbright AAAF3529SEKJ3ZGKQBKS	Square with Flat Top				Colorless	2.44 mm	6-PLCC	580 mcd	130 mcd	500 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	6-SMD		120 °	465 nm 525 nm 625 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red	3.3 V	3.3 V	2.2 V	460 nm 515 nm 640 nm
Kingbright AAAF3529LSEEZGKQBKS	Square with Flat Top	630 nm	460 nm	515 nm	Colorless	2.44 mm	6-PLCC	180 mcd	30 mcd	20 mcd	Clear	1.85 mm	2 mA	2 mA	2 mA	Independent	6-SMD		120 °	465 nm 525 nm 621 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red	2.7 V	2.7 V	1.8 V
Kingbright AAAF3529SEEZGQBDS	Square with Flat Top	630 nm	460 nm	515 nm	Colorless	2.44 mm	6-PLCC	580 mcd	130 mcd	180 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	Chip LED	2 V 3.3 V 3.3 V	120 °	465 nm 525 nm 621 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red
