MPH2-14-UA
ActiveAdam Tech

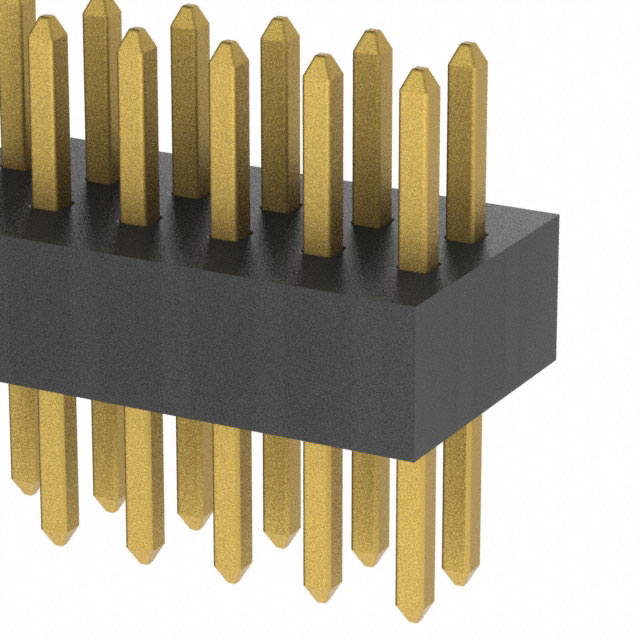

PIN HEADER 14P 1.00MM PITCH PLUG
Deep-Dive with AI
Search across all available documentation for this part.
MPH2-14-UA
ActiveAdam Tech
PIN HEADER 14P 1.00MM PITCH PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPH2-14-UA |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating [x] | 1.9 mm |
| Contact Length - Mating [x] | 0.075 in |
| Contact Length - Post | 0.083 in |
| Contact Length - Post | 2.11 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 0.217 " |
| Overall Contact Length | 5.51 mm |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPH2 Series
Connector Header Through Hole 14 position 0.039" (1.00mm)
