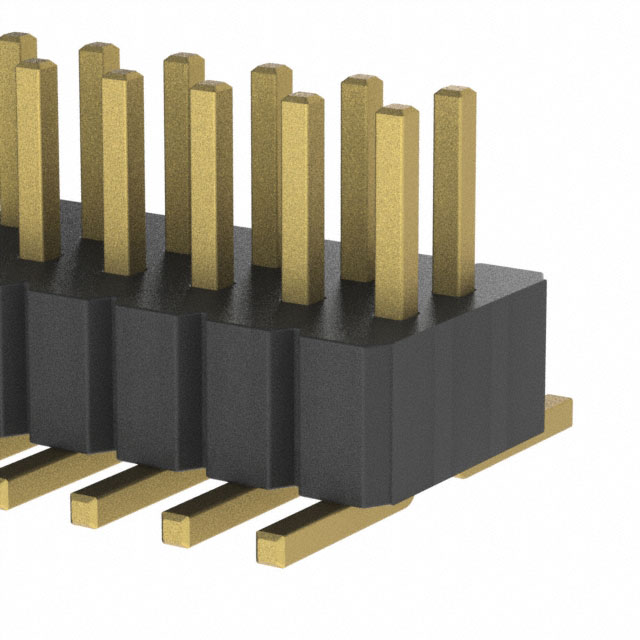

MPH2-16-UA-SMT

Active

Adam Tech

PIN HEADER 16P 1.00MM PITCH SMT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

MPH2-16-UA-SMT

Active

Adam Tech

PIN HEADER 16P 1.00MM PITCH SMT

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPH2-16-UA-SMT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

MPH2 Series

Part	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Voltage Rating	Number of Positions	Contact Material	Connector Type	Mounting Type	Insulation Material	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Fastening Type	Number of Rows	Contact Type	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Shrouding	Termination	Number of Positions
Adam Tech MPH2-10-UA	All	-40 °C	105 ░C	0.083 in	2.11 mm	250 VAC	10	Brass	Header	Through Hole	Thermoplastic	1.5 mm	0.059 "	0.039 "	1 mm	Black	0.039 in	1 mm	Gold	Gold	1.9 mm	0.075 in	UL94 V-0	Push-Pull	2	Male Pin	Square	0.217 "	5.51 mm	Flash	Flash	Unshrouded	Solder
Adam Tech MPH2-14-UA	All	-40 °C	105 ░C	0.083 in	2.11 mm	250 VAC	14	Brass	Header	Through Hole	Thermoplastic	1.5 mm	0.059 "	0.039 "	1 mm	Black	0.039 in	1 mm	Gold	Gold	1.9 mm	0.075 in	UL94 V-0	Push-Pull	2	Male Pin	Square	0.217 "	5.51 mm	Flash	Flash	Unshrouded	Solder
Adam Tech MPH2-14-UA-SMT	All	-40 °C	105 ░C			250 VAC	14	Phosphor Bronze	Header	Surface Mount	Nylon 6T Polyamide (PA6T)	1.5 mm	0.059 "	0.039 "	1 mm	Black	0.039 in	1 mm	Gold	Gold	1.9 mm	0.075 in	UL94 V-0	Push-Pull	2	Male Pin	Square			Flash	Flash	Unshrouded	Solder
Adam Tech MPH2-16-UA-SMT	All	-40 °C	105 ░C			250 VAC		Phosphor Bronze	Header	Surface Mount	Nylon 6T Polyamide (PA6T)	1.5 mm	0.059 "	0.039 "	1 mm	Black	0.039 in	1 mm	Gold	Gold	1.9 mm	0.075 in	UL94 V-0	Push-Pull	2	Male Pin	Square			Flash	Flash	Unshrouded	Solder	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	61	$ 0.74
		122	$ 0.68
		183	$ 0.65
		305	$ 0.62
		427	$ 0.59
		610	$ 0.57
		1525	$ 0.52
		3050	$ 0.48
		6100	$ 0.45
