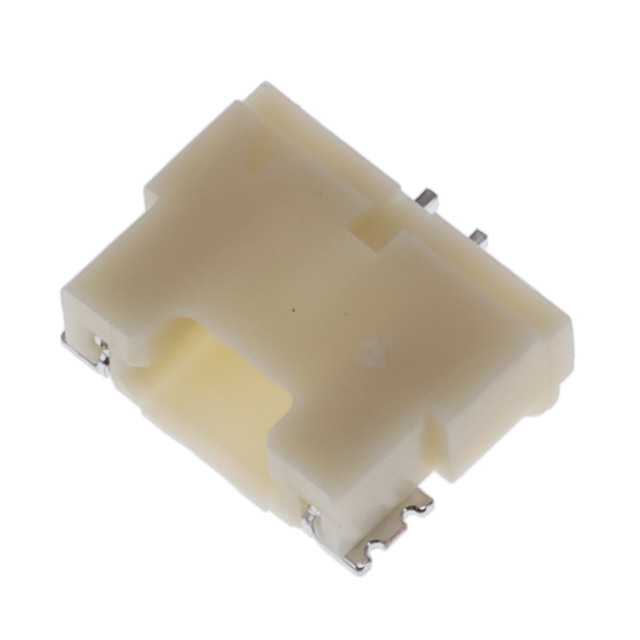

DF14-2P-1.25H(35)
ActiveHirose Electric USA, Inc.
[SIGNALBEE ] 1.25MM PITCH SUPER LOW PROFILE CRIMPING CONNECTORS
Deep-Dive with AI
Search across all available documentation for this part.
DF14-2P-1.25H(35)
ActiveHirose Electric USA, Inc.
[SIGNALBEE ] 1.25MM PITCH SUPER LOW PROFILE CRIMPING CONNECTORS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF14-2P-1.25H(35) |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Length - Mating | 2.2 mm |
| Contact Length - Mating [x] | 0.087 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Solder Retention, Board Guide |
| Insulation Color | Beige |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 150 VAC |
DF14 Series
| Part | Color | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Connector Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Note | Mounting Type | Contact Termination | Contact Type | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Finish - Post | Fastening Type | Voltage Rating | Termination | Contact Material | Features | Style | Insulation Color | Material Flammability Rating | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Beige | 9 | 0.049 in | 1.25 mm | 1 | Receptacle | Nylon Polyamide (PA) | -35 °C | 85 °C | Contacts Not Included | Free Hanging (In-Line) | Crimp | Female Socket | ||||||||||||||||||||||||
Hirose Electric USA, Inc. | 6 | 1 | Header | Nylon Polyamide (PA) | -35 °C | 85 °C | Surface Mount Right Angle | Male Pin | 0.098 in | 2.5 mm | All | 1.25 mm | 0.049 in | Square | Tin | Push-Pull | 150 VDC | Solder | Brass | Board Guide Solder Retention | Board to Cable/Wire | Beige | UL94 V-0 | Shrouded - 4 Wall | |||||||||||||
Hirose Electric USA, Inc. | 1 | Header | Nylon Polyamide (PA) | -35 °C | 85 °C | Surface Mount Right Angle | Male Pin | 0.098 in | 2.5 mm | All | 1.25 mm | 0.049 in | Square | Push-Pull | 150 VDC | Solder | Brass | Board Guide Solder Retention | Board to Cable/Wire | Beige | UL94 V-0 | Shrouded - 4 Wall | 1 µm | 39.4 µin | Tin-Copper | ||||||||||||
Hirose Electric USA, Inc. | 2 | 1 | Header | Nylon Polyamide (PA) | -35 °C | 85 °C | Surface Mount Right Angle | Male Pin | 0.098 in | 2.5 mm | All | 1.25 mm | 0.049 in | Square | Tin | Push-Pull | 150 VAC | Solder | Brass | Board Guide Solder Retention | Board to Cable/Wire | Beige | UL94 V-0 | Shrouded - 4 Wall | 1 µm | 39.4 µin | 2.2 mm | 0.087 in | 1 çm | 39.4 çin | |||||||
Hirose Electric USA, Inc. | Beige | 6 | 0.049 in | 1.25 mm | 1 | Receptacle | Nylon Polyamide (PA) | -35 °C | 85 °C | Free Hanging (In-Line) | Crimp | Female Socket | |||||||||||||||||||||||||
Hirose Electric USA, Inc. | 20 | 1 | Header | Nylon Polyamide (PA) | -35 °C | 85 °C | Surface Mount Right Angle | Male Pin | 0.098 in | 2.5 mm | All | 1.25 mm | 0.049 in | Square | Tin-Copper | Push-Pull | 150 VDC | Solder | Brass | Board Guide Solder Retention | Board to Cable/Wire | Beige | UL94 V-0 | Shrouded - 4 Wall | 0.099 µm | 3.9 µin | Gold | 0.086 in | 1 çm | 39.4 çin | 2.2 mm | ||||||
Hirose Electric USA, Inc. | 8 | 1 | Header | Nylon Polyamide (PA) | -35 °C | 85 °C | Surface Mount Right Angle | Male Pin | 0.098 in | 2.5 mm | All | 1.25 mm | 0.049 in | Square | Tin | Push-Pull | 150 VAC | Solder | Brass | Board Guide Solder Retention | Board to Cable/Wire | Beige | UL94 V-0 | Shrouded - 4 Wall | 1 µm | 39.4 µin | 2.2 mm | 0.087 in | 1 çm | 39.4 çin | |||||||
Hirose Electric USA, Inc. | 8 | 1 | Header | Nylon Polyamide (PA) | -35 °C | 85 °C | Surface Mount Right Angle | Male Pin | 0.098 in | 2.5 mm | All | 1.25 mm | 0.049 in | Square | Tin | Push-Pull | 150 VAC | Solder | Brass | Board Guide Solder Retention | Board to Cable/Wire | Beige | UL94 V-0 | Shrouded - 4 Wall | 1 µm | 39.4 µin | 2.2 mm | 0.087 in | 1 çm | 39.4 çin | |||||||
Hirose Electric USA, Inc. | 1 | Header | Nylon Polyamide (PA) | -35 °C | 85 °C | Surface Mount Right Angle | Male Pin | 0.098 in | 2.5 mm | All | 1.25 mm | 0.049 in | Square | Gold | Push-Pull | 150 VAC | Solder | Brass | Board Guide Solder Retention | Board to Cable/Wire | Beige | UL94 V-0 | Shrouded - 4 Wall | 0.1 µm | 3.94 µin | Gold | 2.2 mm | 0.087 in | 0.1 Ám | 3.94 Áin | |||||||
Hirose Electric USA, Inc. | 6 | 1 | Header | Nylon Polyamide (PA) | -35 °C | 85 °C | Surface Mount Right Angle | Male Pin | 0.098 in | 2.5 mm | All | 1.25 mm | 0.049 in | Square | Gold | Push-Pull | 150 VAC | Solder | Brass | Board Guide Solder Retention | Board to Cable/Wire | Beige | UL94 V-0 | Shrouded - 4 Wall | 0.1 µm | 3.94 µin | Gold | 2.2 mm | 0.087 in | 0.1 Ám | 3.94 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DF14 Series
Connector Header Surface Mount, Right Angle 2 position 0.049" (1.25mm)
