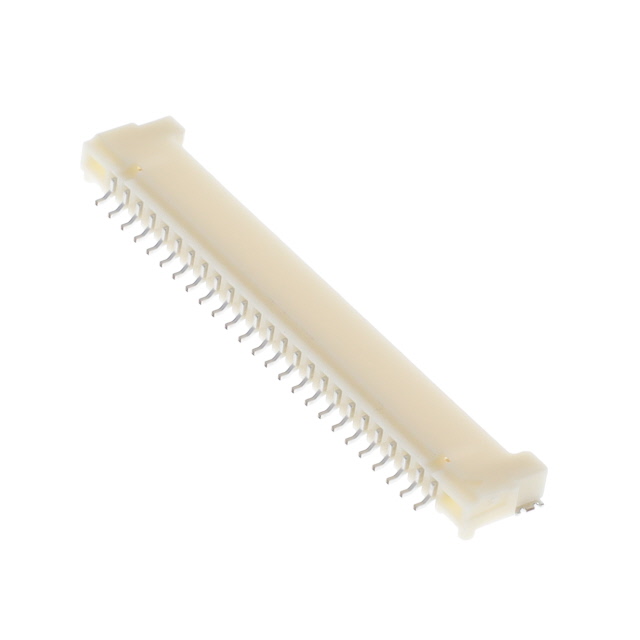

DF14-25P-1.25H(65)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 25POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF14 Series Catalog Datasheet

DF14-25P-1.25H(65)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 25POS 1.25MM

Deep-Dive with AI

DocumentsDF14 Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF14-25P-1.25H(65)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3.94 µin
Contact Finish Thickness - Mating	0.1 µm
Contact Finish Thickness - Post	3.94 Áin
Contact Finish Thickness - Post	0.1 Ám
Contact Length - Mating	2.2 mm
Contact Length - Mating [x]	0.087 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Beige
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VAC

DF14 Series

Part	Color	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Note	Mounting Type	Contact Termination	Contact Type	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Fastening Type	Voltage Rating	Termination	Contact Material	Features	Style	Insulation Color	Material Flammability Rating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]
Hirose Electric USA, Inc. DF14-9S-1.25C	Beige	9	0.049 in	1.25 mm	1	Receptacle	Nylon Polyamide (PA)	-35 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Crimp	Female Socket
Hirose Electric USA, Inc. DF14-6P-1.25H(20)		6			1	Header	Nylon Polyamide (PA)	-35 °C	85 °C		Surface Mount Right Angle		Male Pin	0.098 in	2.5 mm	All	1.25 mm	0.049 in	Square	Tin	Push-Pull	150 VDC	Solder	Brass	Board Guide Solder Retention	Board to Cable/Wire	Beige	UL94 V-0	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF14-25P-1.25H(25)					1	Header	Nylon Polyamide (PA)	-35 °C	85 °C		Surface Mount Right Angle		Male Pin	0.098 in	2.5 mm	All	1.25 mm	0.049 in	Square		Push-Pull	150 VDC	Solder	Brass	Board Guide Solder Retention	Board to Cable/Wire	Beige	UL94 V-0	Shrouded - 4 Wall	1 µm	39.4 µin	Tin-Copper
Hirose Electric USA, Inc. DF14-2P-1.25H(35)		2			1	Header	Nylon Polyamide (PA)	-35 °C	85 °C		Surface Mount Right Angle		Male Pin	0.098 in	2.5 mm	All	1.25 mm	0.049 in	Square	Tin	Push-Pull	150 VAC	Solder	Brass	Board Guide Solder Retention	Board to Cable/Wire	Beige	UL94 V-0	Shrouded - 4 Wall	1 µm	39.4 µin		2.2 mm	0.087 in	1 çm	39.4 çin
Hirose Electric USA, Inc. DF14-6S-1.25C(10)	Beige	6	0.049 in	1.25 mm	1	Receptacle	Nylon Polyamide (PA)	-35 °C	85 °C		Free Hanging (In-Line)	Crimp	Female Socket
Hirose Electric USA, Inc. DF14-20P-1.25H(56)		20			1	Header	Nylon Polyamide (PA)	-35 °C	85 °C		Surface Mount Right Angle		Male Pin	0.098 in	2.5 mm	All	1.25 mm	0.049 in	Square	Tin-Copper	Push-Pull	150 VDC	Solder	Brass	Board Guide Solder Retention	Board to Cable/Wire	Beige	UL94 V-0	Shrouded - 4 Wall	0.099 µm	3.9 µin	Gold		0.086 in	1 çm	39.4 çin	2.2 mm
Hirose Electric USA, Inc. DF14-8P-1.25H(22)		8			1	Header	Nylon Polyamide (PA)	-35 °C	85 °C		Surface Mount Right Angle		Male Pin	0.098 in	2.5 mm	All	1.25 mm	0.049 in	Square	Tin	Push-Pull	150 VAC	Solder	Brass	Board Guide Solder Retention	Board to Cable/Wire	Beige	UL94 V-0	Shrouded - 4 Wall	1 µm	39.4 µin		2.2 mm	0.087 in	1 çm	39.4 çin
Hirose Electric USA, Inc. DF14-8P-1.25H(35)		8			1	Header	Nylon Polyamide (PA)	-35 °C	85 °C		Surface Mount Right Angle		Male Pin	0.098 in	2.5 mm	All	1.25 mm	0.049 in	Square	Tin	Push-Pull	150 VAC	Solder	Brass	Board Guide Solder Retention	Board to Cable/Wire	Beige	UL94 V-0	Shrouded - 4 Wall	1 µm	39.4 µin		2.2 mm	0.087 in	1 çm	39.4 çin
Hirose Electric USA, Inc. DF14-25P-1.25H(65)					1	Header	Nylon Polyamide (PA)	-35 °C	85 °C		Surface Mount Right Angle		Male Pin	0.098 in	2.5 mm	All	1.25 mm	0.049 in	Square	Gold	Push-Pull	150 VAC	Solder	Brass	Board Guide Solder Retention	Board to Cable/Wire	Beige	UL94 V-0	Shrouded - 4 Wall	0.1 µm	3.94 µin	Gold	2.2 mm	0.087 in	0.1 Ám	3.94 Áin
Hirose Electric USA, Inc. DF14-6P-1.25H(65)		6			1	Header	Nylon Polyamide (PA)	-35 °C	85 °C		Surface Mount Right Angle		Male Pin	0.098 in	2.5 mm	All	1.25 mm	0.049 in	Square	Gold	Push-Pull	150 VAC	Solder	Brass	Board Guide Solder Retention	Board to Cable/Wire	Beige	UL94 V-0	Shrouded - 4 Wall	0.1 µm	3.94 µin	Gold	2.2 mm	0.087 in	0.1 Ám	3.94 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.62
		13	$ 2.28
		104	$ 2.04
		507	$ 1.70
		1001	$ 1.45
		5005	$ 1.29

Description

General part information

DF14 Series

Connector Header Surface Mount, Right Angle 25 position 0.049" (1.25mm)

Documents

Technical documentation and resources

DF14 Series Catalog

Datasheet
