BA00BC0WF-E2

NRND

Rohm Semiconductor

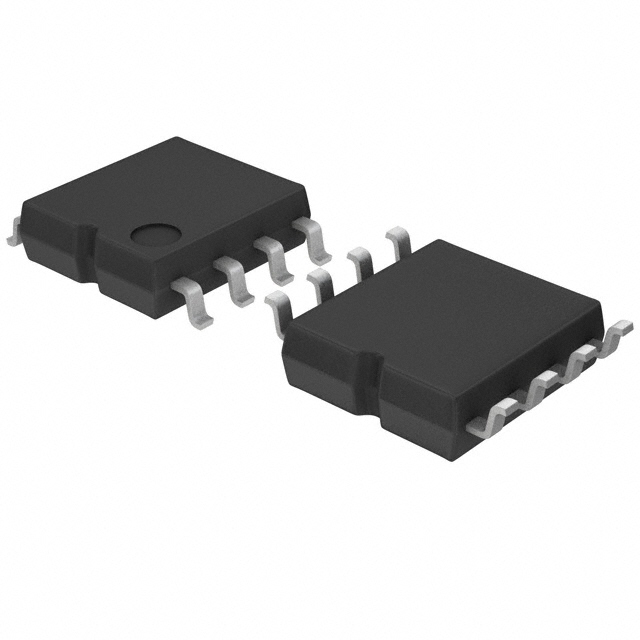

IC REG LINEAR POS ADJ 500MA 8SOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BA00BC0WF-E2

NRND

Rohm Semiconductor

IC REG LINEAR POS ADJ 500MA 8SOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BA00BC0WF-E2

Current - Output	500 mA
Current - Quiescent (Iq)	130 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	0.173 in
Package / Case	4.4 mm
Package / Case	8-SOIC
Protection Features	Over Current, Over Temperature
PSRR	55 dB
Supplier Device Package	8-SOP
Voltage - Input (Max) [Max]	16 V
Voltage - Output (Max) [Max]	12 V
Voltage - Output (Min/Fixed)	1.5 V
Voltage Dropout (Max) [Max]	0.5 V

BA00 Series

Part	Control Features	Current - Supply (Max) [Max]	Voltage - Output (Max) [Max]	Mounting Type	Number of Regulators	Voltage - Output (Min/Fixed)	Protection Features	Voltage - Input (Max) [Max]	Current - Output	Output Configuration	Output Type	PSRR	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Package / Case	Package / Case	Voltage Dropout (Max) [Max]	PSRR [Max]	PSRR [Min]
Rohm Semiconductor BA00AST	Enable	5 mA	25 V	Through Hole	1	1.225 V	Over Current Over Temperature Over Voltage	25 V	1 A	Positive	Adjustable	55 dB	TO-220-5 Full-Pak	TO-220-5 Full Pack	85 °C	-40 °C	2.5 mA
Rohm Semiconductor BA00ASFP-E2	Enable	5 mA	25 V	Surface Mount	1	1.225 V	Over Current Over Temperature Over Voltage	25 V	1 A	Positive	Adjustable	55 dB	TO-252-5	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	85 °C	-40 °C	2.5 mA
Rohm Semiconductor BA00BC0WCP-V5E2	Enable	900 µA	12 V	Through Hole	1	1.5 V	Over Current Over Temperature	16 V	1 A	Positive	Adjustable	55 dB	TO220CP-V5	TO-220-5 Full Pack Formed Leads	105 ░C	-40 °C	0.5 mA
Rohm Semiconductor BA00BC0WF-E2			12 V	Surface Mount	1	1.5 V	Over Current Over Temperature	16 V	500 mA	Positive	Adjustable	55 dB	8-SOP	8-SOIC	105 ░C	-40 °C	130 µA	0.173 in	4.4 mm	0.5 V
Rohm Semiconductor BA00JC5WT	Enable		12 V	Through Hole	1	1.5 V	Over Current Over Temperature	16 V	1.5 A	Positive	Adjustable		TO-220FP	TO-220-5 Full Pack	105 ░C	-40 °C	130 µA			0.5 V	50 dB	55 dB
Rohm Semiconductor BA00CC0WT-V5	Enable	5 mA	25 V	Through Hole	1	1.225 V	Over Current Over Temperature Over Voltage	25 V	1 A	Positive	Adjustable	55 dB	TO-220FP	TO-220-5 Full Pack	125 °C	-40 °C	2.5 mA
Rohm Semiconductor BA00BC0WFP-E2	Enable	900 µA	12 V	Surface Mount	1	1.5 V	Over Current Over Temperature	16 V	1 A	Positive	Adjustable	55 dB	TO-252-5	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	105 ░C	-40 °C	0.5 mA
Rohm Semiconductor BA00DD0WHFP-TR	Enable	5 mA	24.3 V	Surface Mount	1	1.27 V	Over Current Over Temperature Over Voltage	25 V	2 A	Positive	Adjustable	55 dB	HRP-5	HRP-5 (5 Leads + Tab)	125 °C	-40 °C	2.5 mA			0.7 V
Rohm Semiconductor BA00CC0WT	Enable	5 mA	25 V	Through Hole	1	1.225 V	Over Current Over Temperature Over Voltage	25 V	1 A	Positive	Adjustable	55 dB	TO-220FP-5	TO-220-5 Full Pack	125 °C	-40 °C	2.5 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 1.01
		5000	$ 0.96
		7500	$ 0.94

Description

General part information

BA00 Series

Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-SOP

Documents

Technical documentation and resources
