BA00ASFP-E2

NRND

Rohm Semiconductor

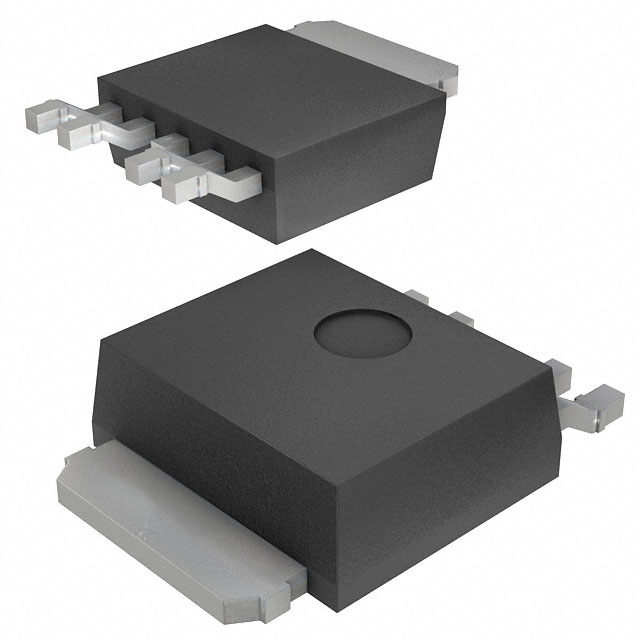

IC REG LINEAR POS ADJ 1A TO252-5

Deep-Dive with AI

Search across all available documentation for this part.

BA00ASFP-E2

NRND

Rohm Semiconductor

IC REG LINEAR POS ADJ 1A TO252-5

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BA00ASFP-E2

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	2.5 mA
Current - Supply (Max) [Max]	5 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	DPAK (4 Leads + Tab), TO-252-5, TO-252AD
Protection Features	Over Voltage, Over Current, Over Temperature
PSRR	55 dB
Supplier Device Package	TO-252-5
Voltage - Input (Max) [Max]	25 V
Voltage - Output (Max) [Max]	25 V
Voltage - Output (Min/Fixed)	1.225 V

BA00 Series

Part	Control Features	Current - Supply (Max) [Max]	Voltage - Output (Max) [Max]	Mounting Type	Number of Regulators	Voltage - Output (Min/Fixed)	Protection Features	Voltage - Input (Max) [Max]	Current - Output	Output Configuration	Output Type	PSRR	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Package / Case	Package / Case	Voltage Dropout (Max) [Max]	PSRR [Max]	PSRR [Min]
Rohm Semiconductor BA00AST	Enable	5 mA	25 V	Through Hole	1	1.225 V	Over Current Over Temperature Over Voltage	25 V	1 A	Positive	Adjustable	55 dB	TO-220-5 Full-Pak	TO-220-5 Full Pack	85 °C	-40 °C	2.5 mA
Rohm Semiconductor BA00ASFP-E2	Enable	5 mA	25 V	Surface Mount	1	1.225 V	Over Current Over Temperature Over Voltage	25 V	1 A	Positive	Adjustable	55 dB	TO-252-5	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	85 °C	-40 °C	2.5 mA
Rohm Semiconductor BA00BC0WCP-V5E2	Enable	900 µA	12 V	Through Hole	1	1.5 V	Over Current Over Temperature	16 V	1 A	Positive	Adjustable	55 dB	TO220CP-V5	TO-220-5 Full Pack Formed Leads	105 ░C	-40 °C	0.5 mA
Rohm Semiconductor BA00BC0WF-E2			12 V	Surface Mount	1	1.5 V	Over Current Over Temperature	16 V	500 mA	Positive	Adjustable	55 dB	8-SOP	8-SOIC	105 ░C	-40 °C	130 µA	0.173 in	4.4 mm	0.5 V
Rohm Semiconductor BA00JC5WT	Enable		12 V	Through Hole	1	1.5 V	Over Current Over Temperature	16 V	1.5 A	Positive	Adjustable		TO-220FP	TO-220-5 Full Pack	105 ░C	-40 °C	130 µA			0.5 V	50 dB	55 dB
Rohm Semiconductor BA00CC0WT-V5	Enable	5 mA	25 V	Through Hole	1	1.225 V	Over Current Over Temperature Over Voltage	25 V	1 A	Positive	Adjustable	55 dB	TO-220FP	TO-220-5 Full Pack	125 °C	-40 °C	2.5 mA
Rohm Semiconductor BA00BC0WFP-E2	Enable	900 µA	12 V	Surface Mount	1	1.5 V	Over Current Over Temperature	16 V	1 A	Positive	Adjustable	55 dB	TO-252-5	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	105 ░C	-40 °C	0.5 mA
Rohm Semiconductor BA00DD0WHFP-TR	Enable	5 mA	24.3 V	Surface Mount	1	1.27 V	Over Current Over Temperature Over Voltage	25 V	2 A	Positive	Adjustable	55 dB	HRP-5	HRP-5 (5 Leads + Tab)	125 °C	-40 °C	2.5 mA			0.7 V
Rohm Semiconductor BA00CC0WT	Enable	5 mA	25 V	Through Hole	1	1.225 V	Over Current Over Temperature Over Voltage	25 V	1 A	Positive	Adjustable	55 dB	TO-220FP-5	TO-220-5 Full Pack	125 °C	-40 °C	2.5 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.78
		10	$ 1.80
		25	$ 1.54
		100	$ 1.25
		250	$ 1.11
		500	$ 1.02
		1000	$ 0.95
	Digi-Reel®	1	$ 2.78
		10	$ 1.80
		25	$ 1.54
		100	$ 1.25
		250	$ 1.11
		500	$ 1.02
		1000	$ 0.95
	Tape & Reel (TR)	2000	$ 0.89
		4000	$ 0.84
		6000	$ 0.82
		10000	$ 0.79

Description

General part information

BA00 Series

Linear Voltage Regulator IC Positive Adjustable 1 Output 1A TO-252-5
