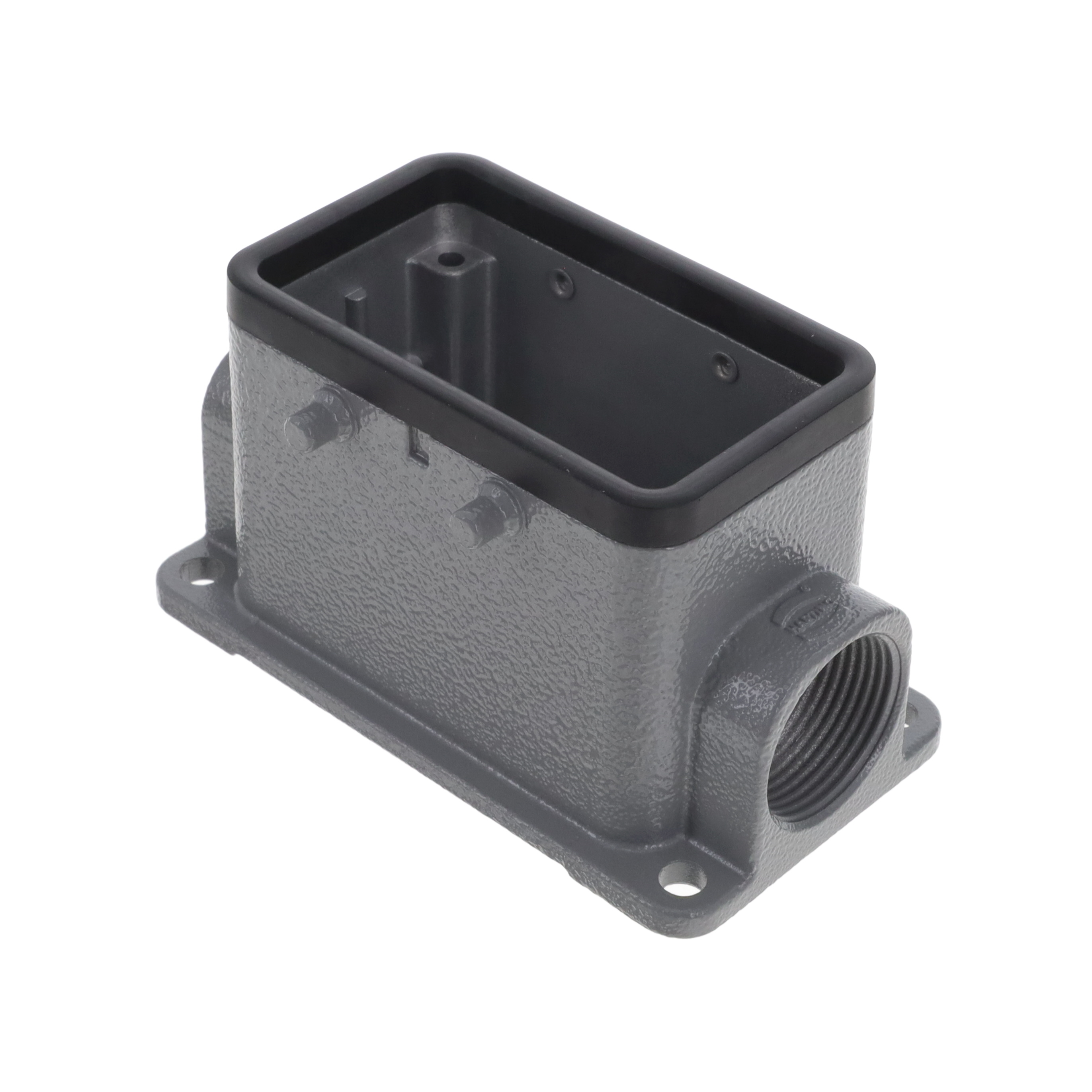

10B SURFACE MOUNT HOUSING, DOUBLE LEVER, FOR HOOD W/ LEVERS LOW CONSTRUCTION, 2XM25

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

19300101261

Active

HARTING Technology Group

10B SURFACE MOUNT HOUSING, DOUBLE LEVER, FOR HOOD W/ LEVERS LOW CONSTRUCTION, 2XM25

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300101261

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Style	Side Entry, Dual
Thread Size	M25

19300101 Series

Part	Housing Color	Style	Housing Material	Connector Type	Ingress Protection	Size	Housing Finish	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19300101261	Gray	Side Entry Dual	Aluminum Die Cast	Base - Box Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M25	125 °C	-40 °C	Locking Clip (2) on Base Bottom
HARTING Technology Group 19300101521	Gray	Side Entry	Aluminum Die Cast	Hood	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M25	125 °C	-40 °C	Locking Clip (2) on Base Bottom	2.244 "	72.6 mm	43 mm	1.693 in	2.858 "	57 mm
HARTING Technology Group 19300101502
HARTING Technology Group 19300101131	Gray	Top Entry	Aluminum Die Cast	Hood - Panel Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M25	125 °C	-40 °C	Locking Clip (1) on Hood	3.165 in	126.5 mm	70.5 mm	2.776 "	4.98 "	80.4 mm
HARTING Technology Group 19300101255	Gray	Side Entry	Aluminum Die Cast	Base - Box Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (1) on Base Bottom	2.118 "	94 mm	52 mm	2.047 "	3.701 "	53.8 mm	Cover
HARTING Technology Group 19300101265	Gray	Side Entry	Aluminum Die Cast	Base - Box Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (2) on Hood	2.118 "	94 mm	52 mm	2.047 "	3.701 "	53.8 mm
HARTING Technology Group 19300101420	Gray	Top Entry	Aluminum Die Cast	Hood	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (2) on Base Bottom	2.303 "	72.6 mm		1.693 in	2.858 "			43 mm	58.5 mm
HARTING Technology Group 19300101730	Gray	Bottom Entry	Aluminum Die Cast	Hood - Coupling	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (2) on Hood Top	1.866 "	72.6 mm	43 mm	1.693 in	2.858 "	47.4 mm	Cable to Cable
HARTING Technology Group 19300101230	Gray	Side Entry	Aluminum Die Cast	Base - Box Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (2) on Base Bottom	2.118 "	94 mm	52 mm	2.047 "	3.701 "	53.8 mm
HARTING Technology Group 19300101141	Gray	Top Entry	Aluminum Die Cast	Hood - Panel Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M25	125 °C	-40 °C	Locking Clip (1) on Base Bottom	3.165 in	126.5 mm	70.5 mm	2.776 "	4.98 "	80.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 24.83
		10	$ 23.63
Newark	Each	1	$ 71.65
		10	$ 64.96
		25	$ 62.37
		50	$ 58.28
		100	$ 56.06
		250	$ 53.09

Description

General part information

19300101 Series

Base - Box Mount Connector Side Entry, Dual M25 10B IP65 - Dust Tight, Water Resistant
