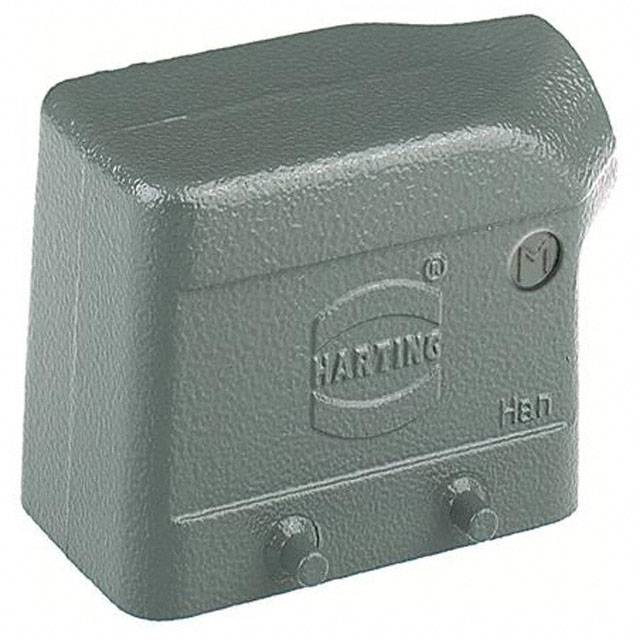

HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ALUMINUM BODY, 2 LEVER, 10B

Deep-Dive with AI

Search across all available documentation for this part.

Documents19300101521 Prod Declaration Cert Datasheet

19300101521

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ALUMINUM BODY, 2 LEVER, 10B

Deep-Dive with AI

Documents19300101521 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300101521

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	72.6 mm
Size / Dimension [x]	2.858 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.244 "
Size / Dimension [z]	57 mm
Style	Side Entry
Thread Size	M25

19300101 Series

Part	Housing Color	Style	Housing Material	Connector Type	Ingress Protection	Size	Housing Finish	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19300101261	Gray	Side Entry Dual	Aluminum Die Cast	Base - Box Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M25	125 °C	-40 °C	Locking Clip (2) on Base Bottom
HARTING Technology Group 19300101521	Gray	Side Entry	Aluminum Die Cast	Hood	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M25	125 °C	-40 °C	Locking Clip (2) on Base Bottom	2.244 "	72.6 mm	43 mm	1.693 in	2.858 "	57 mm
HARTING Technology Group 19300101502
HARTING Technology Group 19300101131	Gray	Top Entry	Aluminum Die Cast	Hood - Panel Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M25	125 °C	-40 °C	Locking Clip (1) on Hood	3.165 in	126.5 mm	70.5 mm	2.776 "	4.98 "	80.4 mm
HARTING Technology Group 19300101255	Gray	Side Entry	Aluminum Die Cast	Base - Box Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (1) on Base Bottom	2.118 "	94 mm	52 mm	2.047 "	3.701 "	53.8 mm	Cover
HARTING Technology Group 19300101265	Gray	Side Entry	Aluminum Die Cast	Base - Box Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (2) on Hood	2.118 "	94 mm	52 mm	2.047 "	3.701 "	53.8 mm
HARTING Technology Group 19300101420	Gray	Top Entry	Aluminum Die Cast	Hood	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (2) on Base Bottom	2.303 "	72.6 mm		1.693 in	2.858 "			43 mm	58.5 mm
HARTING Technology Group 19300101730	Gray	Bottom Entry	Aluminum Die Cast	Hood - Coupling	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (2) on Hood Top	1.866 "	72.6 mm	43 mm	1.693 in	2.858 "	47.4 mm	Cable to Cable
HARTING Technology Group 19300101230	Gray	Side Entry	Aluminum Die Cast	Base - Box Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M20	125 °C	-40 °C	Locking Clip (2) on Base Bottom	2.118 "	94 mm	52 mm	2.047 "	3.701 "	53.8 mm
HARTING Technology Group 19300101141	Gray	Top Entry	Aluminum Die Cast	Hood - Panel Mount	IP65 - Dust Tight Water Resistant	10B	Powder Coated	M25	125 °C	-40 °C	Locking Clip (1) on Base Bottom	3.165 in	126.5 mm	70.5 mm	2.776 "	4.98 "	80.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.19
		10	$ 22.19
		25	$ 19.89
		50	$ 18.41
		100	$ 17.10
		250	$ 15.62
		500	$ 14.65
Newark	Each	1	$ 23.25
		5	$ 22.29
		10	$ 21.33
		25	$ 20.13
		50	$ 17.75
		100	$ 16.80

Description

General part information

19300101 Series

Hood Connector Side Entry M25 10B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

19300101521 Prod Declaration Cert

Datasheet
