R25-1001002

Active

Harwin Inc.

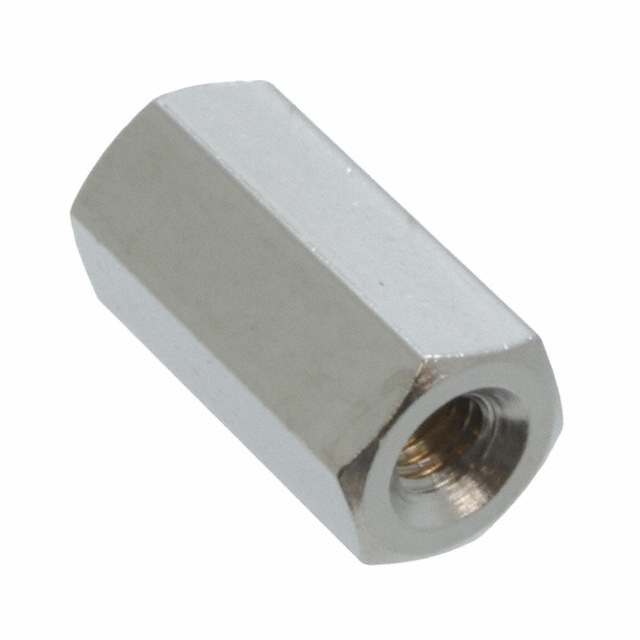

HEX STNDFF M2.5X0.45 BRASS 10MM

Search across all available documentation for this part.

Active

Harwin Inc.

HEX STNDFF M2.5X0.45 BRASS 10MM

Technical Specifications

Parameters and characteristics for this part

Part	Material	Between Board Height	Between Board Height	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Screw, Thread Size	Threaded/Unthreaded	Type	Gender	Length - Overall [x]	Length - Overall [x]	Between Board Height [z]	Between Board Height [z]	Length - Overall	Length - Overall
Harwin Inc. R25-1002502	Brass	0.984 in	25 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	25 mm	0.984 in
Harwin Inc. R25-1000802	Brass			0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	8 mm	0.315 in	0.315 in	8 mm
Harwin Inc. R25-1001802	Brass	0.709 in	18 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	18 mm	0.709 "
Harwin Inc. R25-1001402	Brass	0.551 in	14 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	14 mm	0.551 "
Harwin Inc. R25-1001202	Brass	0.472 in	12 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	12 mm	0.472 in
Harwin Inc. R25-1001602	Brass			0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	16 mm	0.63 "	0.63 in	16 mm
Harwin Inc. R25-1001102	Brass	0.433 in	11 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	11 mm	0.433 in
Harwin Inc. R25-1001002	Brass	0.394 in	10 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	10 mm	0.394 "
Harwin Inc. R25-1001502	Brass	0.591 in	15 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female		0.591 in			15 mm
Harwin Inc. R25-1001302	Brass	0.512 in	13 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female					13 mm	0.512 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M2.5x0.45 Brass 0.394" (10.00mm)
