R25-1000802

Active

Harwin Inc.

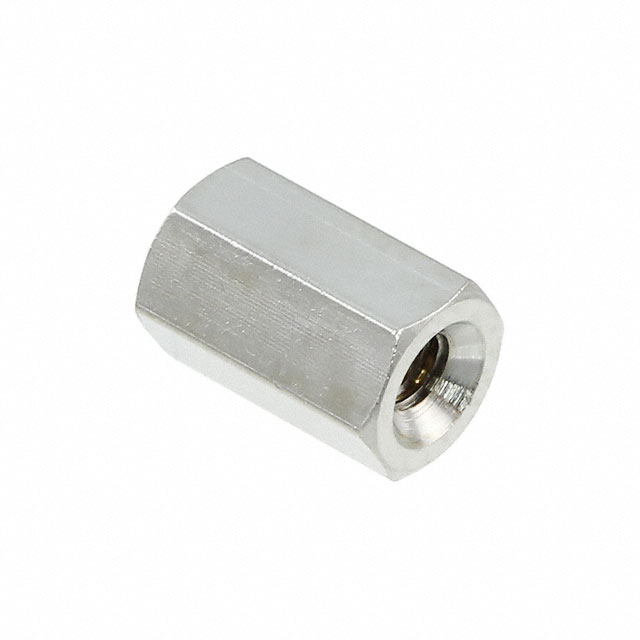

STANDOFF, HEX FEMALE, BRASS, M2.5, 8MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

STANDOFF, HEX FEMALE, BRASS, M2.5, 8MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Material	Between Board Height	Between Board Height	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Screw, Thread Size	Threaded/Unthreaded	Type	Gender	Length - Overall [x]	Length - Overall [x]	Between Board Height [z]	Between Board Height [z]	Length - Overall	Length - Overall
Harwin Inc. R25-1002502	Brass	0.984 in	25 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	25 mm	0.984 in
Harwin Inc. R25-1000802	Brass			0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	8 mm	0.315 in	0.315 in	8 mm
Harwin Inc. R25-1001802	Brass	0.709 in	18 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	18 mm	0.709 "
Harwin Inc. R25-1001402	Brass	0.551 in	14 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	14 mm	0.551 "
Harwin Inc. R25-1001202	Brass	0.472 in	12 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	12 mm	0.472 in
Harwin Inc. R25-1001602	Brass			0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	16 mm	0.63 "	0.63 in	16 mm
Harwin Inc. R25-1001102	Brass	0.433 in	11 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	11 mm	0.433 in
Harwin Inc. R25-1001002	Brass	0.394 in	10 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female	10 mm	0.394 "
Harwin Inc. R25-1001502	Brass	0.591 in	15 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female		0.591 in			15 mm
Harwin Inc. R25-1001302	Brass	0.512 in	13 mm	0.217 in	5.5 mm	Nickel	M2.5x0.45	Threaded	Hex Standoff	Female					13 mm	0.512 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M2.5x0.45 Brass 0.315" (8.00mm)
