216-208

Active

WAGO Corporation

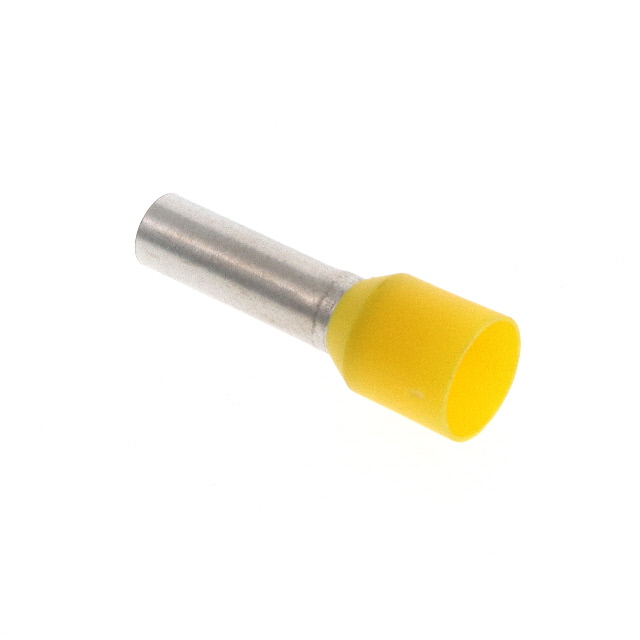

WIRE FERRULE, SINGLE WIRE, 10 AWG, 6 MM², 12 MM, YELLOW, 216 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

216-208

Active

WAGO Corporation

WIRE FERRULE, SINGLE WIRE, 10 AWG, 6 MM², 12 MM, YELLOW, 216 SERIES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	216-208

Color	Yellow
Insulation	Insulated
Length - Overall [x]	20 mm
Size	10 AWG
Size	6 mm˛
Style	DIN
Type	Single Wire

216 Series

Part	Size	Size	Type	Color	Insulation	Style	Length - Overall [x]	Length - Pin [x]
WAGO Corporation 216-267	12 AWG	4 mm²	Single Wire	Gray	Insulated	DIN	20 mm
WAGO Corporation 216-203	1 mm² 18 AWG		Single Wire	Red	Insulated	DIN	14 mm	8 mm
WAGO Corporation 216-201	0.5 mm² 20 AWG		Single Wire	White	Insulated	DIN	14 mm	8 mm
WAGO Corporation 216-206	14 AWG	2.5 mm˛	Single Wire	Blue	Insulated	DIN	15 mm	8 mm
WAGO Corporation 216-301	0.25 mm² 24 AWG		Single Wire	Yellow	Insulated	DIN	12 mm	8 mm
WAGO Corporation 216-241	0.5 mm² 20 AWG		Single Wire	White	Insulated	DIN	16 mm	10 mm
WAGO Corporation 216-222	18 AWG	0.75 mm²	Single Wire	Gray	Insulated	DIN	12 mm	6 mm
WAGO Corporation 216-321	0.25 mm² 24 AWG		Single Wire	Yellow	Insulated	DIN	10 mm	6 mm
WAGO Corporation 216-244	16 AWG	1.5 mm˛	Single Wire	Black	Insulated	DIN	16 mm	10 mm
WAGO Corporation 216-208	10 AWG	6 mm˛	Single Wire	Yellow	Insulated	DIN	20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.59
		10	$ 0.52
		100	$ 0.43
		1000	$ 0.31
		5000	$ 0.27
		10000	$ 0.25
Newark	Each	1	$ 0.55
		25	$ 0.52
		100	$ 0.49
		250	$ 0.46
		500	$ 0.42

Description

General part information

216 Series

The 216-208 is a yellow Insulated Ferrule Terminal suitable for 6mm²/10AWG wire size. It is designed with electro-tin plated electrolytic copper contact, according to DIN 46228 and part 4/09.90.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
