216-321

Active

WAGO Corporation

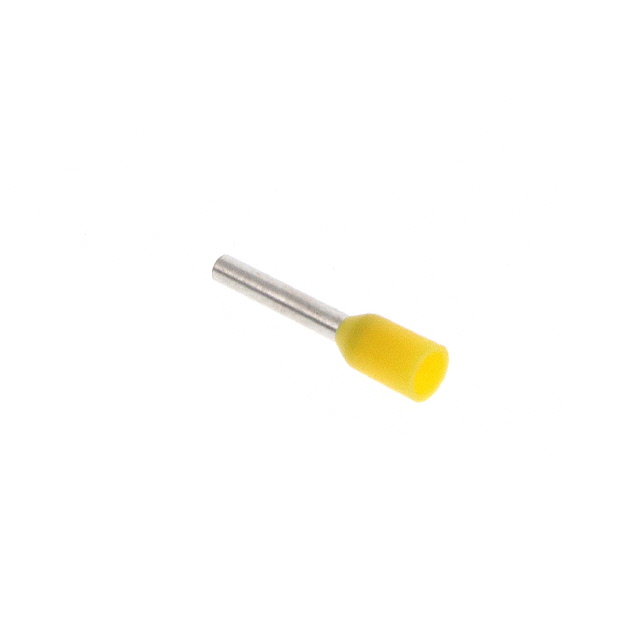

WIRE FERRULE, SINGLE WIRE, 24 AWG, 0.35 MM², 6 MM, YELLOW, 216 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

216-321

Active

WAGO Corporation

WIRE FERRULE, SINGLE WIRE, 24 AWG, 0.35 MM², 6 MM, YELLOW, 216 SERIES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	216-321

Color	Yellow
Insulation	Insulated
Length - Overall [x]	10 mm
Length - Pin [x]	6 mm
Size	24 AWG, 0.25 mm²
Style	DIN
Type	Single Wire

216 Series

Part	Size	Size	Type	Color	Insulation	Style	Length - Overall [x]	Length - Pin [x]
WAGO Corporation 216-267	12 AWG	4 mm²	Single Wire	Gray	Insulated	DIN	20 mm
WAGO Corporation 216-203	1 mm² 18 AWG		Single Wire	Red	Insulated	DIN	14 mm	8 mm
WAGO Corporation 216-201	0.5 mm² 20 AWG		Single Wire	White	Insulated	DIN	14 mm	8 mm
WAGO Corporation 216-206	14 AWG	2.5 mm˛	Single Wire	Blue	Insulated	DIN	15 mm	8 mm
WAGO Corporation 216-301	0.25 mm² 24 AWG		Single Wire	Yellow	Insulated	DIN	12 mm	8 mm
WAGO Corporation 216-241	0.5 mm² 20 AWG		Single Wire	White	Insulated	DIN	16 mm	10 mm
WAGO Corporation 216-222	18 AWG	0.75 mm²	Single Wire	Gray	Insulated	DIN	12 mm	6 mm
WAGO Corporation 216-321	0.25 mm² 24 AWG		Single Wire	Yellow	Insulated	DIN	10 mm	6 mm
WAGO Corporation 216-244	16 AWG	1.5 mm˛	Single Wire	Black	Insulated	DIN	16 mm	10 mm
WAGO Corporation 216-208	10 AWG	6 mm˛	Single Wire	Yellow	Insulated	DIN	20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.22
		25	$ 0.19
		50	$ 0.18
		100	$ 0.17
		250	$ 0.15
		500	$ 0.14
		1000	$ 0.12
		3000	$ 0.11
Newark	Each	1	$ 0.19
		25	$ 0.18
		100	$ 0.17
		250	$ 0.16
		500	$ 0.15

Description

General part information

216 Series

The 216-321 is a yellow Insulated Ferrule Terminal suitable for 0.25mm²/24AWG wire size. It is designed with electro-tin plated electrolytic copper, according to DIN 46228 and part 4/09.90.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
