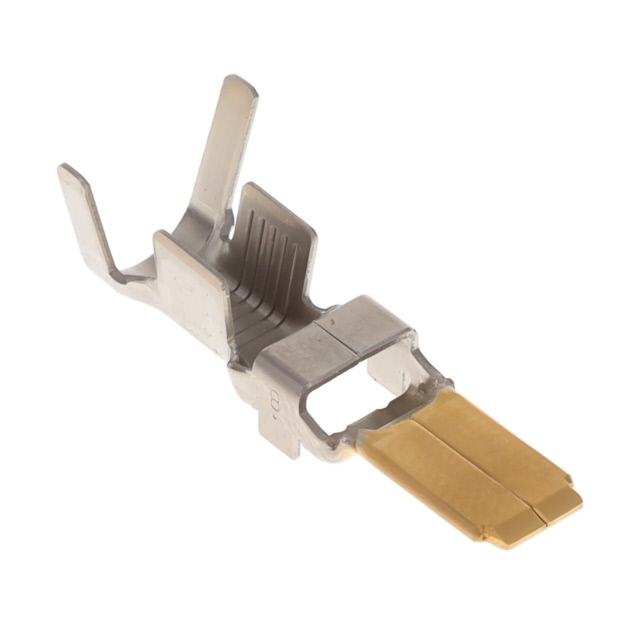

DF60A-8PCFA

Active

Hirose Electric USA, Inc.

CONN INLINE PLUG CONTACT 8AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF60A-8PCFA Spec Sheet Datasheet

DF60A-8PCFA

Active

Hirose Electric USA, Inc.

CONN INLINE PLUG CONTACT 8AWG

Deep-Dive with AI

DocumentsDF60A-8PCFA Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF60A-8PCFA

Contact Finish	Gold
Contact Finish Thickness	7.87 µin
Contact Finish Thickness	0.2 µm
Contact Termination	Crimp
Pin or Socket	Pin
Type	Stamped
Wire Gauge	8 AWG

DF60A Series

Part	Fastening Type	Connector Type	Mounting Type	Contact Termination	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Rows	Color	Insulation Material	Number of Positions	Note	Contact Finish	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Type	Pin or Socket
Hirose Electric USA, Inc. DF60A-3S-10.16C(15)	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Red	Polybutylene Terephthalate (PBT) Glass Filled
Hirose Electric USA, Inc. DF60A-1S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C			1	Black	Polybutylene Terephthalate (PBT) Glass Filled	1
Hirose Electric USA, Inc. DF60A-6S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled	6
Hirose Electric USA, Inc. DF60A-3S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled		Contacts Not Included
Hirose Electric USA, Inc. DF60A-2S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled	2	Contacts Not Included
Hirose Electric USA, Inc. DF60A-8PCFA				Crimp											Gold	8 AWG	7.87 µin	0.2 µm	Stamped	Pin
Hirose Electric USA, Inc. DF60A-2S-10.16C(15)	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Red	Polybutylene Terephthalate (PBT) Glass Filled	2
Hirose Electric USA, Inc. DF60A-5S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled
Hirose Electric USA, Inc. DF60A-4EP-10.16C	Latch Holder	Plug	Free Hanging (In-Line)	Crimp	Blade Pin	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled	4	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.51
		10	$ 3.19
		25	$ 3.02
		50	$ 2.95
		100	$ 2.81
		250	$ 2.46
	Tape & Reel (TR)	700	$ 1.99
		1400	$ 1.85
		2100	$ 1.78
		3500	$ 1.70
		4900	$ 1.66

Description

General part information

DF60A Series

Pin Contact Gold 8 AWG Crimp Stamped

Documents

Technical documentation and resources

DF60A-8PCFA Spec Sheet

Datasheet
