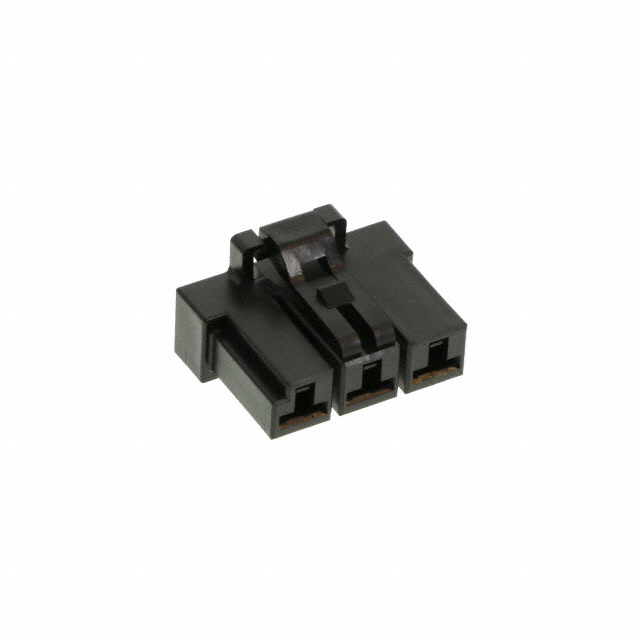

DF60A-3S-10.16C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 3POS 10.16MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF60A-3S-10.16C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 3POS 10.16MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF60A-3S-10.16C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	10.16 mm
Pitch [x]	0.4 in

DF60A Series

Part	Fastening Type	Connector Type	Mounting Type	Contact Termination	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Rows	Color	Insulation Material	Number of Positions	Note	Contact Finish	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Type	Pin or Socket
Hirose Electric USA, Inc. DF60A-3S-10.16C(15)	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Red	Polybutylene Terephthalate (PBT) Glass Filled
Hirose Electric USA, Inc. DF60A-1S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C			1	Black	Polybutylene Terephthalate (PBT) Glass Filled	1
Hirose Electric USA, Inc. DF60A-6S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled	6
Hirose Electric USA, Inc. DF60A-3S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled		Contacts Not Included
Hirose Electric USA, Inc. DF60A-2S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled	2	Contacts Not Included
Hirose Electric USA, Inc. DF60A-8PCFA				Crimp											Gold	8 AWG	7.87 µin	0.2 µm	Stamped	Pin
Hirose Electric USA, Inc. DF60A-2S-10.16C(15)	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Red	Polybutylene Terephthalate (PBT) Glass Filled	2
Hirose Electric USA, Inc. DF60A-5S-10.16C	Latch Lock	Receptacle	Free Hanging (In-Line)	Crimp	Female Socket	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled
Hirose Electric USA, Inc. DF60A-4EP-10.16C	Latch Holder	Plug	Free Hanging (In-Line)	Crimp	Blade Pin	105 ░C	-55 °C	10.16 mm	0.4 in	1	Black	Polybutylene Terephthalate (PBT) Glass Filled	4	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.22
		10	$ 0.93
		25	$ 0.84
		50	$ 0.77
		100	$ 0.71
		250	$ 0.65
		500	$ 0.60
		1000	$ 0.56
		2500	$ 0.51

Description

General part information

DF60A Series

3 Rectangular Connectors - Housings Receptacle Black 0.400" (10.16mm)
