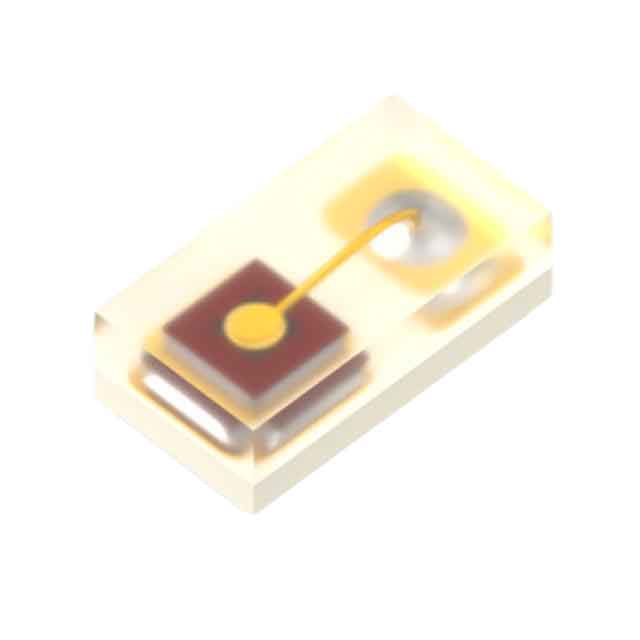

APG0603SEC-TT

Active

Kingbright

LED ORANGE CLEAR 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APG0603SEC-TT

Active

Kingbright

LED ORANGE CLEAR 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APG0603SEC-TT

Configuration	Standard
Current - Test	10 mA
Height (Max) [Max]	0.25 mm
Lens Color	Colorless
Lens Size [x]	0.35 mm
Lens Size [y]	0.65 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	150 mcd
Mounting Type	Surface Mount
Package / Case	2-SMD, 0201
Size / Dimension [x]	0.65 mm
Size / Dimension [y]	0.35 mm
Supplier Device Package	2-SMD
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	2.01 V
Wavelength - Dominant	605 nm
Wavelength - Peak	611 nm

APG0603 Series

Part	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Lens Size [y]	Lens Size [x]	Millicandela Rating	Color	Lens Transparency	Viewing Angle	Supplier Device Package	Configuration	Mounting Type	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Style	Height (Max) [Max]	Lens Color	Wavelength - Peak	Wavelength - Dominant [custom]	Wavelength - Dominant	Package / Case
Kingbright APG0603RWF-TT-5MAV	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	100 mcd	White	Diffused	135 °	2-SMD	Standard	Surface Mount	5 mA	2.9 V	Rectangle with Flat Top	0.25 mm	Yellow
Kingbright APG0603VGC-TT-5MAV	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	80 mcd	Green	Clear	145 °	2-SMD	Standard	Surface Mount	5 mA	3 V	Rectangle with Flat Top	0.25 mm	Colorless	518 nm	527 nm
Kingbright APG0603VBC-A1-5MAV	0201	0.35 mm	0.65 mm	0.35 mm	0.65 mm	60 mcd	Blue	Clear	140 °	2-SMD	Standard	Surface Mount	5 mA	2.9 V	Rectangle with Flat Top	0.25 mm	Colorless	463 nm		468 nm	0603 Metric
Kingbright APG0603PBC-TT-5MAV	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	25 mcd	Blue	Clear	140 °	2-SMD	Standard	Surface Mount	5 mA	2.9 V	Rectangle with Flat Top	0.25 mm	Colorless	461 nm		467 nm
Kingbright APG0603ZGC-5MAV	0201	0.35 mm	0.65 mm	0.35 mm	0.65 mm	280 mcd	Green	Clear	140 °	2-SMD	Standard	Surface Mount	5 mA	2.85 V	Rectangle with Flat Top	0.25 mm	Colorless	515 nm		525 nm	0603 Metric
Kingbright APG0603CGC-TT	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	15 mcd	Green	Clear	140 °	2-SMD	Standard	Surface Mount	10 mA	1.97 V	Rectangle with Flat Top	0.25 mm	Colorless	572 nm		571 nm
Kingbright APG0603SEC-TT	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	150 mcd		Clear	140 °	2-SMD	Standard	Surface Mount	10 mA	2.01 V	Rectangle with Flat Top	0.25 mm	Colorless	611 nm		605 nm
Kingbright APG0603SEC-E-TT	2-SMD 0201	0.35 mm	0.65 mm	0.65 mm	0.35 mm	120 mcd	Red	Clear	140 °	2-SMD	Standard	Surface Mount	10 mA	1.93 V	Rectangle with Flat Top	0.25 mm	Colorless	632 nm		624 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.52
		10	$ 0.30
		100	$ 0.19
		500	$ 0.15
		1000	$ 0.14
		2000	$ 0.13
	Digi-Reel®	1	$ 0.52
		10	$ 0.30
		100	$ 0.19
		500	$ 0.15
		1000	$ 0.14
		2000	$ 0.13
	Tape & Reel (TR)	4000	$ 0.12
		8000	$ 0.11
		12000	$ 0.11
		20000	$ 0.10
		28000	$ 0.10
		40000	$ 0.10
		100000	$ 0.09

Description

General part information

APG0603 Series

Orange 605nm LED Indication - Discrete 2.01V 2-SMD, 0201
